Outer Socket and Inner Socket
WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
SWING TORQUE

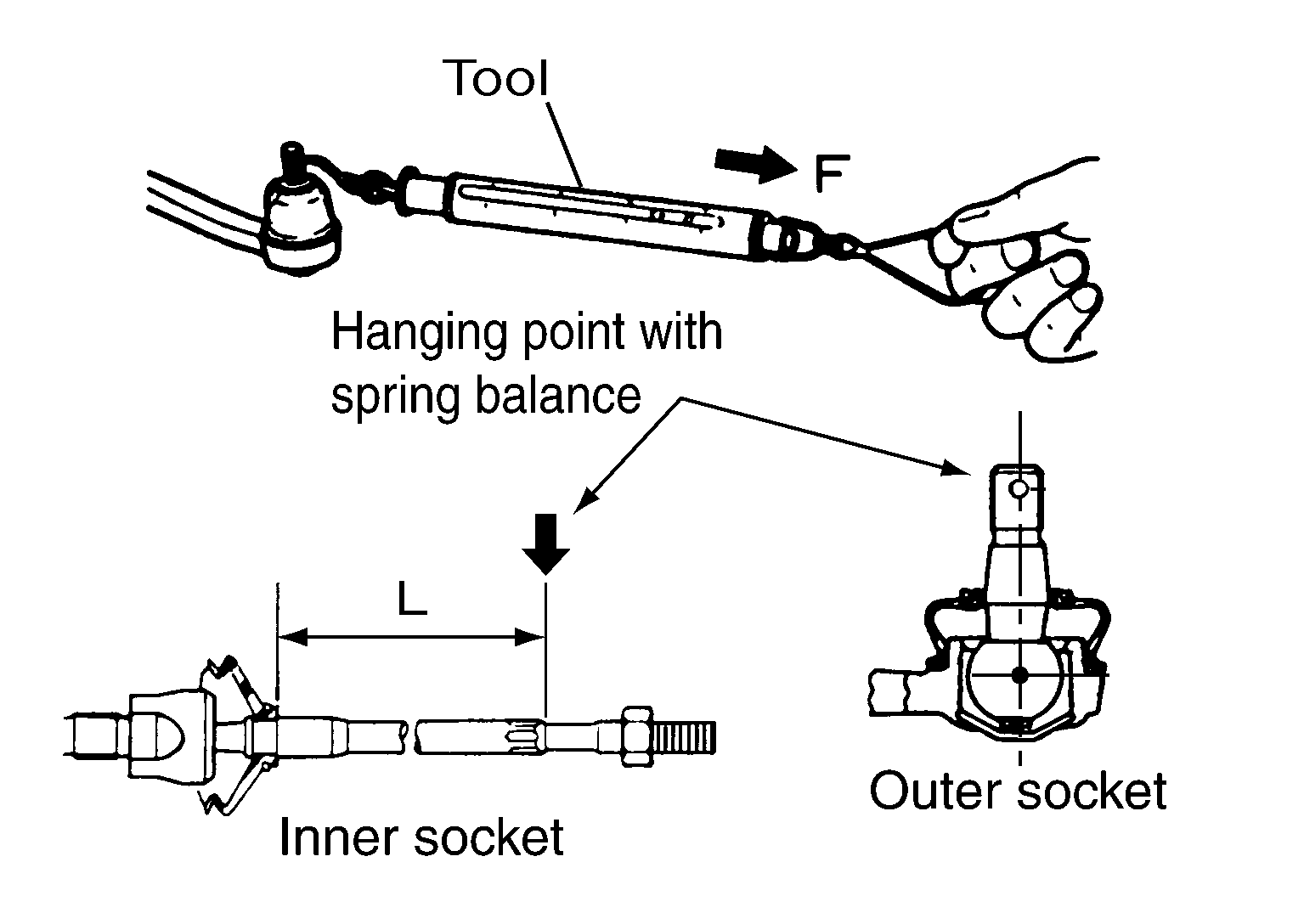

- Measure the swing torque, using Tool. When ball stud and inner socket start moving the measured value must be within the specification. If the reading is outside the specification, replace the socket.
Tool number: ST3127S000 (J-25765-A)
Outer socket rotating torque Refer to "STEERING GEAR "
| Item | Outer socket | Inner socket |
|---|---|---|
| Measuring point | Cotter pin hole of stud | Refer to "STEERING GEAR " |
| Swing torque | Refer to "STEERING GEAR " | Refer to "STEERING GEAR " |
| Measuring value | "STEERING GEAR " | Refer to "STEERING GEAR " |
ROTATING TORQUE
- Measure the rotating torque, using Tool. If the value is outside the specification, replace the outer sockets.
Tool number: - (J-44372)
Outer socket swing torque Refer to "STEERING GEAR "
AXIAL END PLAY
- Apply a load of 490 N (50 kg-f, 110 lb-f) to the ball stud axially. Use a dial gauge to measure the amount of the movement that the stud makes. If the value is outside the specification, replace the sockets.
Outer socket: Refer to "STEERING GEAR "
Inner socket: Refer to "STEERING GEAR "
