Front Drive Shaft And Drive Chain: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install plug to front drive shaft.
    CAUTION: Never reuse plug.

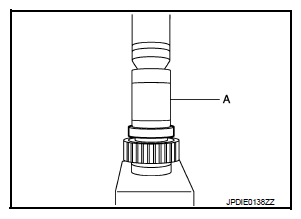

  2. Install front drive shaft front bearing with the drift (A) [SST: ST33200000 (J-26082)].
    Fig 1: Installing Front Drive Shaft Front Bearing
    G07016563Courtesy of NISSAN NORTH AMERICA, INC.

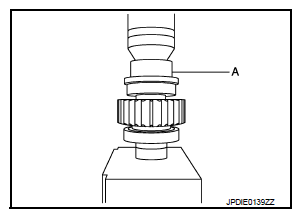

  3. Install front drive shaft rear bearing with the drift (A) [SST: KV38104010 (-)].
    Fig 2: Installing Front Drive Shaft Rear Bearing
    G07016564Courtesy of NISSAN NORTH AMERICA, INC.
  4. Set drive chain to front drive shaft.
    CAUTION: Identification mark (A) of drive chain should be in the side of front bearing (1) of front drive shaft.
  5. Install drive chain to main shaft, and then install front drive shaft.
    CAUTION: Never use tools. Always install by hand.
  6. Install front case to rear case. Refer to "ASSEMBLY ".
    Fig 3: Identifying Identification Mark On Drive Chain And Front Bearing
    G05727203Courtesy of NISSAN NORTH AMERICA, INC.
