VQ37VHR: Exploded View

WARNING: This page is about a different variant/trim than selected.

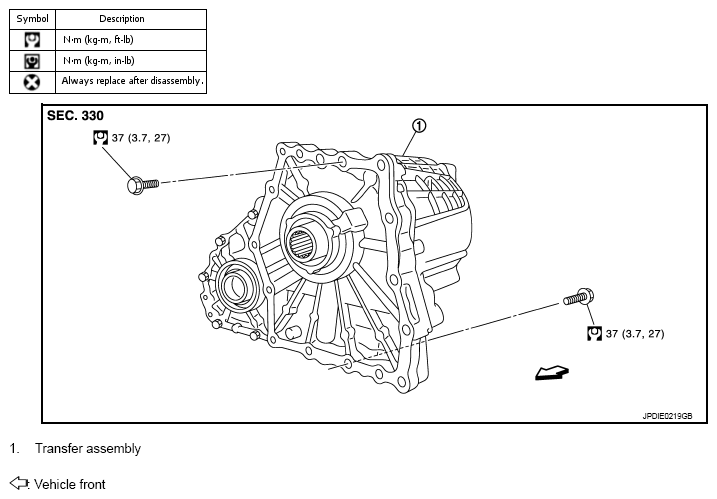

Fig 1: Transfer Assembly With Torque Specifications (VQ37VHR)
G08648198Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
