Signal Tech II Diagnostic Tool (ITB10-023B)

Publication date: 2011-10-03
Reference number: ITB10-023B
Supersedes refnos: ITB10-023, ITB10-023A

SIGNAL TECH II DIAGNOSTIC TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): ITB10-023b, Date of Issue: October 3, 2011

INFINITI:	All Infiniti
CLASSIFICATION:	WT10-002b
APPLIED VEHICLES:	All Infiniti with Tire Pressure Monitor System (TPMS), Remote Keyless Entry, or Intelligent Key

NOTE: This bulletin has been amended. The Note below Applied Vehicles was amended. Please discard previous versions of this bulletin.

NOTE: Failure to update Signal Tech II may lead to misdiagnosis of vehicles built after February 28, 2010.

The latest software is available on the CONSULT III PC at: ASIST > Specialty Tools > Signal Tech II.
If you should encounter problems updating Signal Tech II, contact Techmate at 1-800-662-2001.
Future updates will be released as needed. Check ASIST frequently for this information.

SERVICE INFORMATION

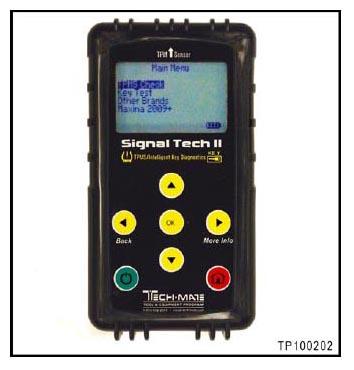

If service is required on a vehicle's Tire Pressure Monitor System (TPMS), remote keyless entry, or Intelligent Key, the Signal Tech II (special tool J-50190) can be used for diagnostics.

Signal Tech II will quickly:

Activate and display TPMS Sensor IDs
Display tire pressure reported by the TPMS sensor
Read TPMS DTCs and register TPMS IDs
Store and print reports for warrantable repairs
Check Intelligent Key relative signal strength
Test remote keyless entry relative signal strength
Confirm vehicle Intelligent Key antenna relative signal strength output
Read ENGINE DTCs

Other available information for Signal Tech II:

Signal Tech II Quick Start Guide: ASIST > Tools & Equipment > Tool & Equipment Web Page
Signal Tech II Users Guide: ASIST > Tools & Equipment > Tools & Equipment Web Page
Tool Flyer: ASIST > Tools & Equipment > Tools & Equipment Web Page > Infiniti Essential Tool Flyers
Tech Talk Article: ASIST > Tech Support Info > TECH TALK / XTRA > Spring 2010 issue
