Driver Seat Control Unit Connector End View (B513)

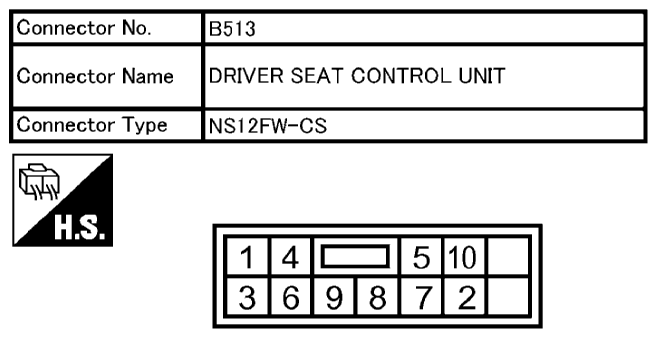

Fig 1: Driver Seat Control Unit Connector End View (B513)
G10677810Courtesy of NISSAN NORTH AMERICA, INC.
