Yaw Rate/Side/Decel G Sensor Connector End View (M143)

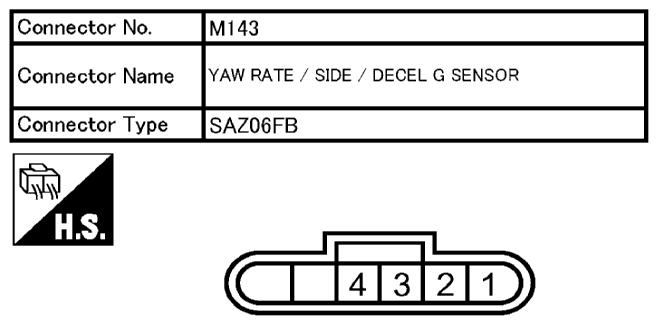

Fig 1: Yaw Rate/Side/Decel G Sensor Connector End View (M143)
G10678187Courtesy of NISSAN NORTH AMERICA, INC.
