Exploded View

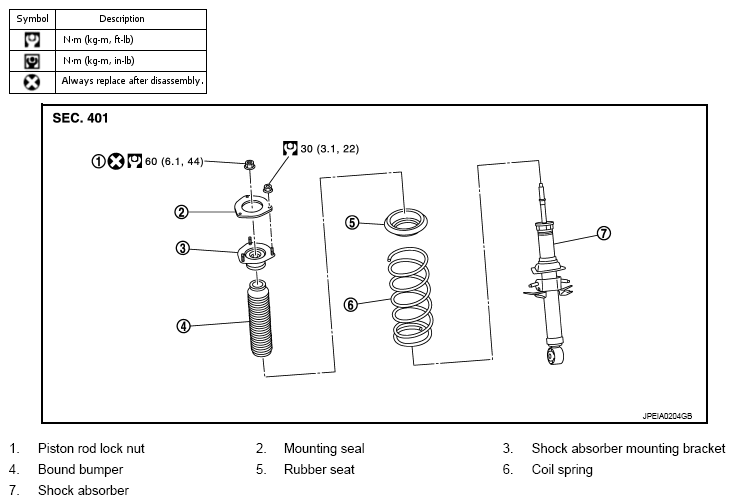

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications
G08654132Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
