Exploded View

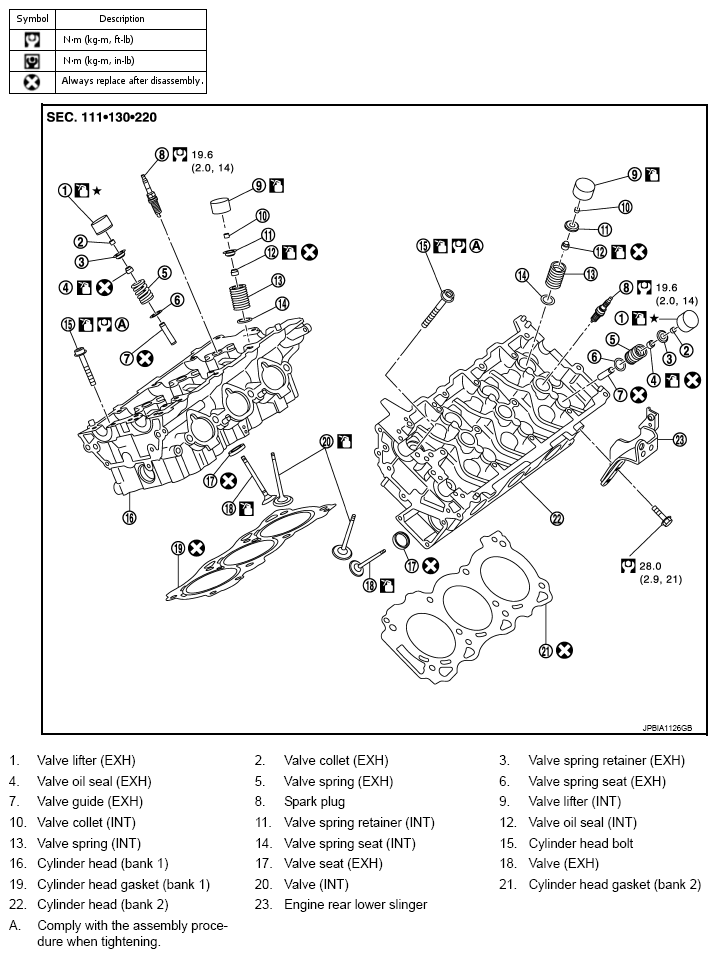

Fig 1: Exploded View Of Cylinder Head With Torque Specifications
G08647729Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.

CAUTION: As for replacement of parts on the intake side as shown in the exploded view above, replace VVEL ladder assembly and cylinder head assembly. (Only valve oil seals are replaceable as a single part.)
NOTE: VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.
