AUTOMATIC SPEED CONTROL DEVICE (ASCD): System Diagram

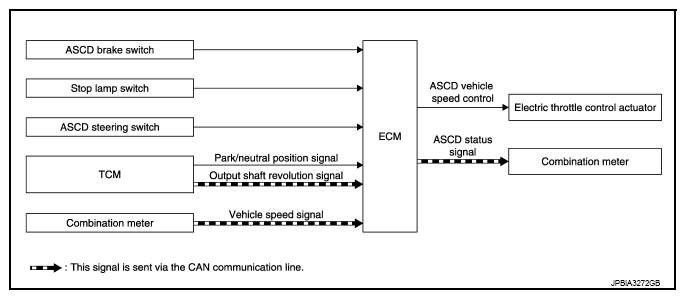

Fig 1: Identifying Automatic Speed Control Device System Diagram
G08649103Courtesy of NISSAN NORTH AMERICA, INC.
