Security Control System (With Intelligent Key System)
>>
System Description
>>
System
>>
Vehicle Security System
>>
VEHICLE SECURITY SYSTEM: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
VEHICLE SECURITY SYSTEM: System Diagram

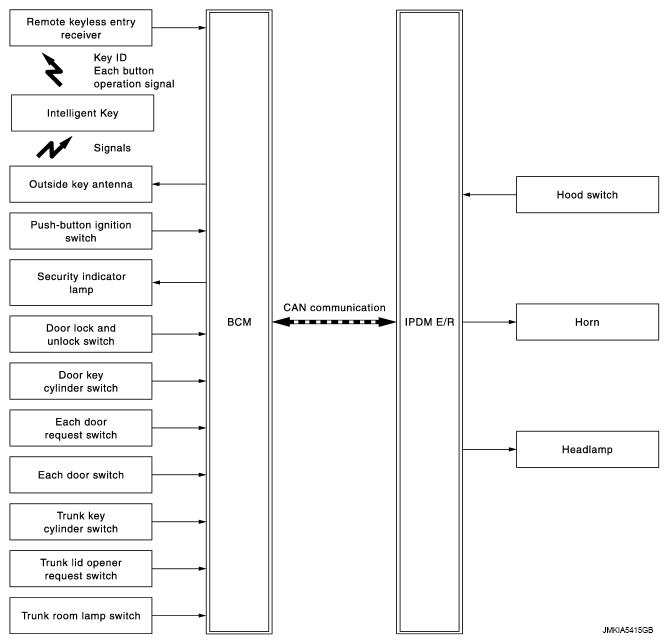

Fig 1: Vehicle Security System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
