Exploded View

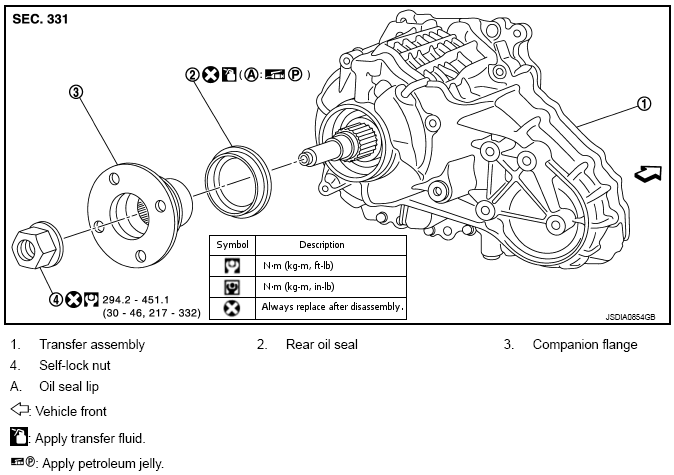

Fig 1: Exploded View Of Rear Oil Seal With Torque Specification
G08648191Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
