System Application*1

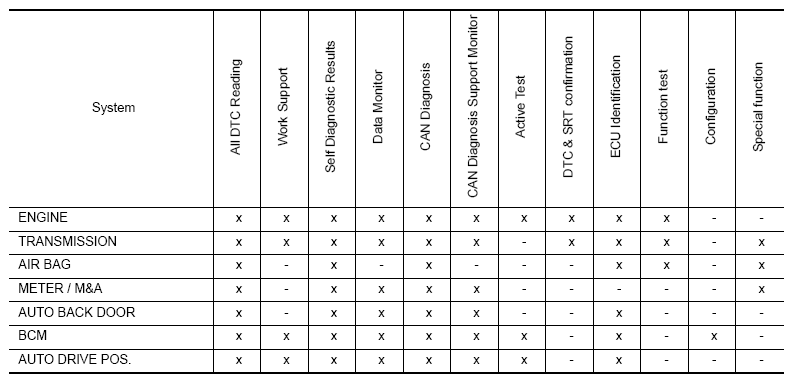

Fig 1: Consult Function And System Application Chart (1 Of 2)
G08258349Courtesy of NISSAN NORTH AMERICA, INC.

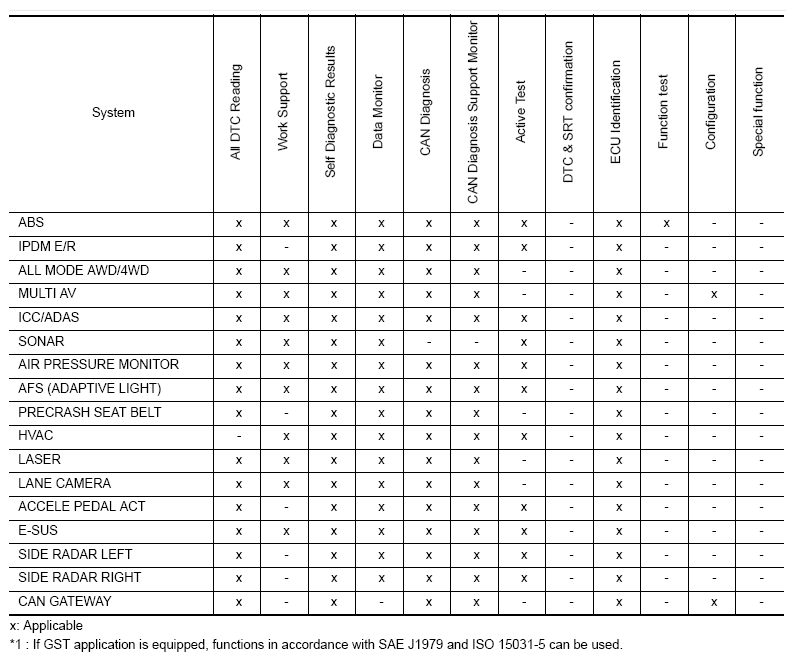

Fig 2: Consult Function And System Application Chart (2 Of 2)
G08258350Courtesy of NISSAN NORTH AMERICA, INC.
