Exploded View

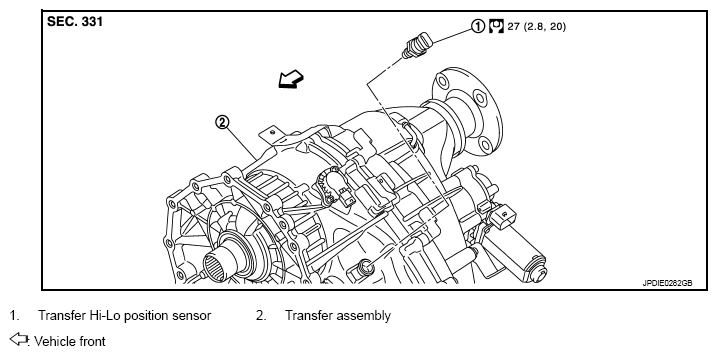

Fig 1: Exploded View Of Transfer HI-LO Position Sensor With Torque Specifications
G08255013Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
