Exploded View

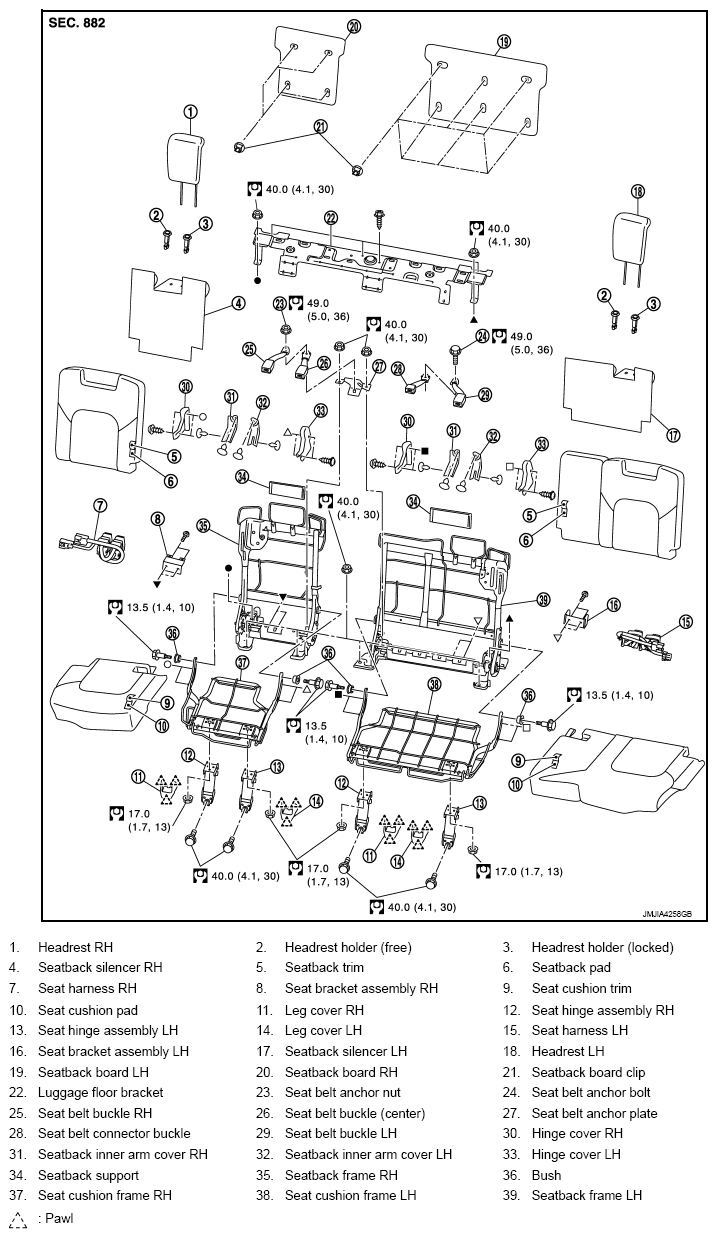

Fig 1: Exploded View Of Third Seat With Torque Specifications
G08258992Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
