Brake Control System (Brake Assist) (With Preview Function)
>>
System Description
>>
Component Parts
>>
Component Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Description

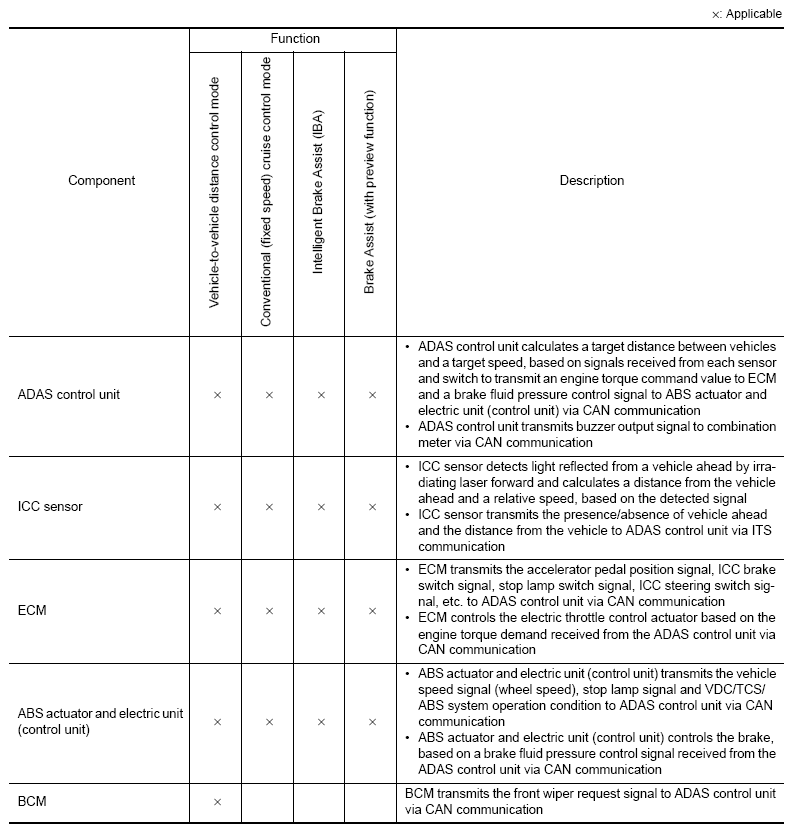

Fig 1: Brake Control System Components Function Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

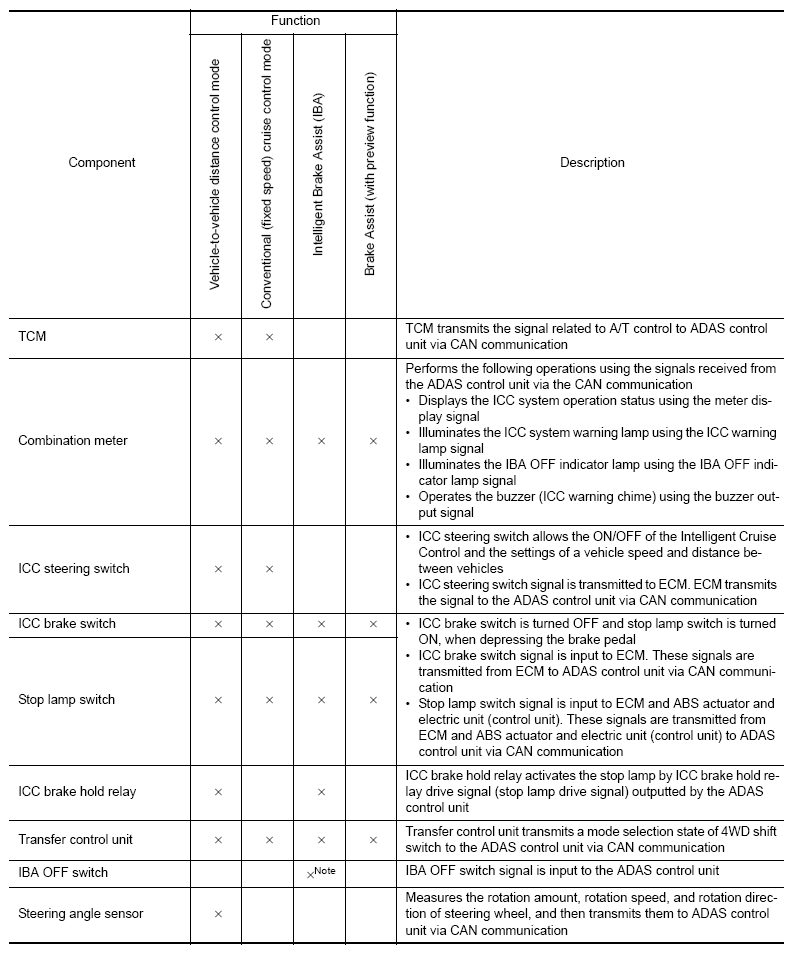

Fig 2: Brake Control System Components Function Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Only IBA system uses
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
