Transfer Lock Position Sensor Connector End View (F40)

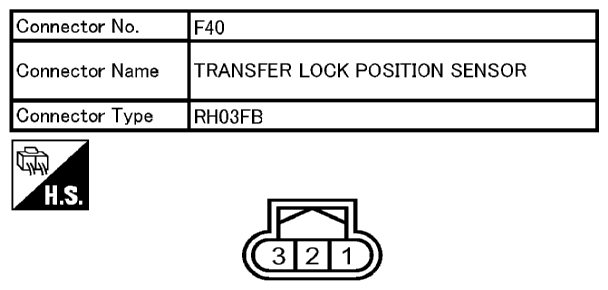

Fig 1: Transfer Lock Position Sensor Connector End View (F40)
G10692870Courtesy of NISSAN NORTH AMERICA, INC.
