Exploded View

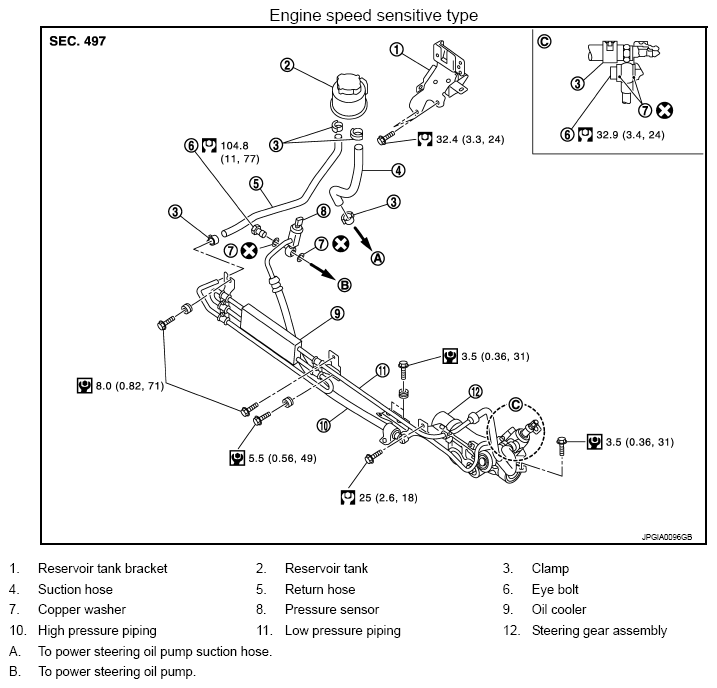

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (Engine Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

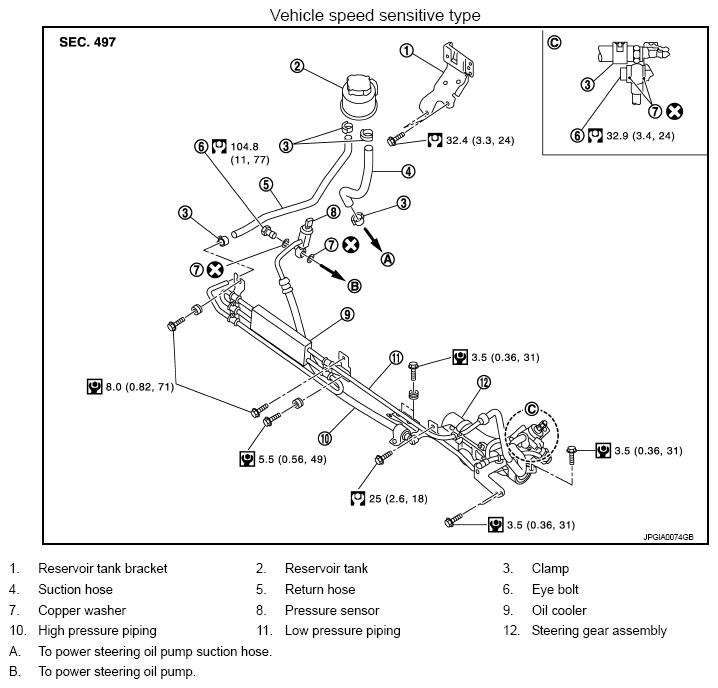

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications (Vehicle Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
