Automatic Transaxle
>>
System Description
>>
System
>>
A/T Control System
>>
A/T CONTROL SYSTEM: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A/T CONTROL SYSTEM: System Diagram

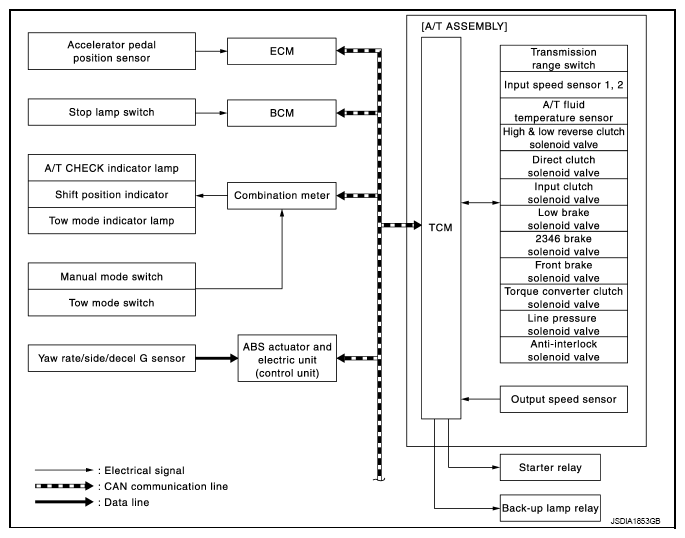

Fig 1: A/T Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
