SHIFT CHANGE CONTROL: System Diagram

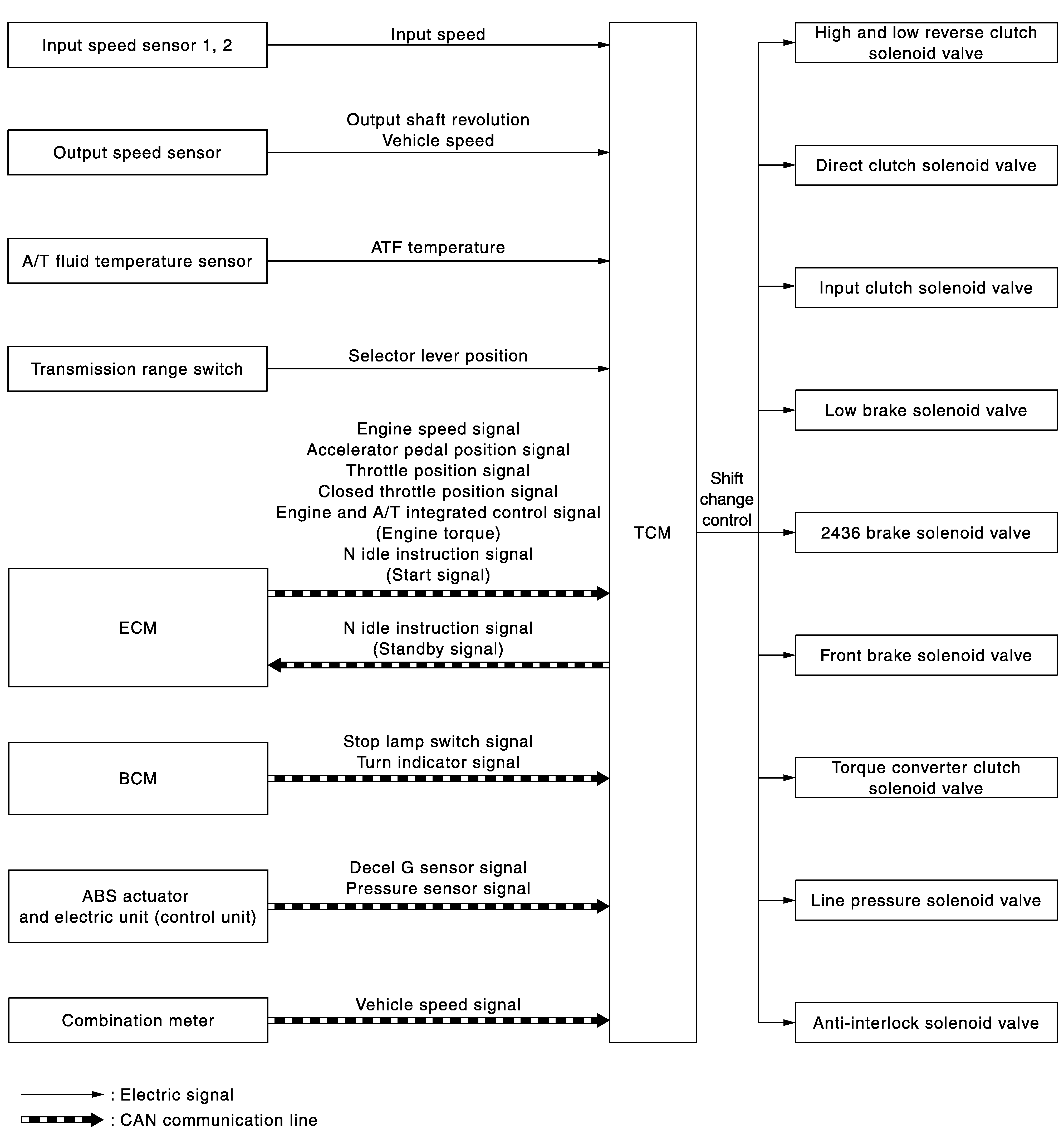

Fig 1: Shift Change Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
