Direct Clutch: Assembly

Install direct clutch component part (drive plates, driven plates, retaining plate and dish plate) to direct clutch drum.

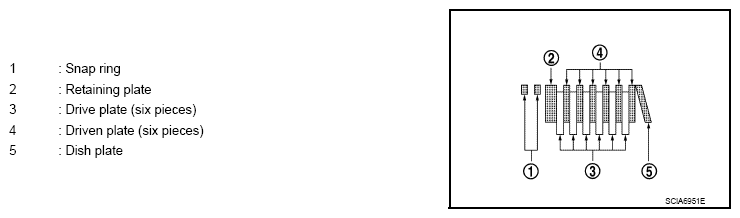

Fig 1: Identifying Direct Clutch Components
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the order of plates.
Install snap rings to direct clutch drum using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch direct clutch drum and direct clutch retaining plate.
- Be careful not to damage snap ring.

  Fig 2: Removing/Installing Direct Clutch Drum Snap Ring Using Flat-Bladed Screwdriver
  Courtesy of NISSAN NORTH AMERICA, INC.
