4WD: Exploded View

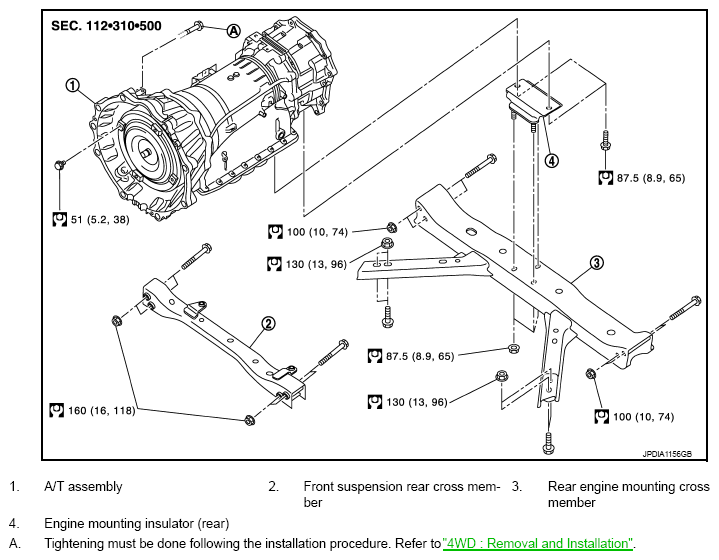

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (4WD)
G08254672Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
