Exploded View

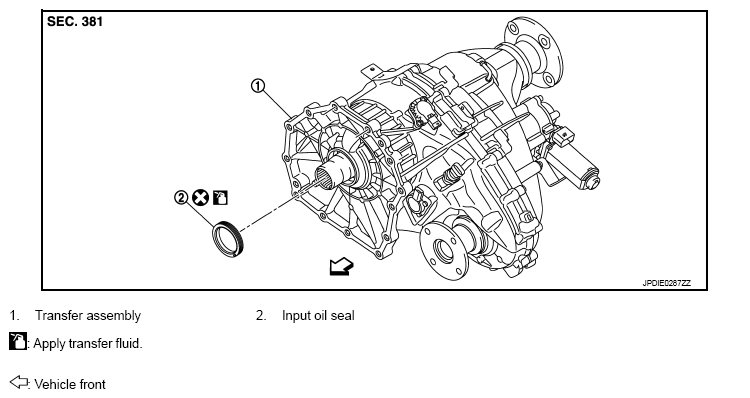

Fig 1: Exploded View Of Input Oil Seal
G08255028Courtesy of NISSAN NORTH AMERICA, INC.

<==: Vehicle front

Refer to "COMPONENTS " for symbols not described above.
