EVAPORATIVE EMISSION SYSTEM: System Diagram

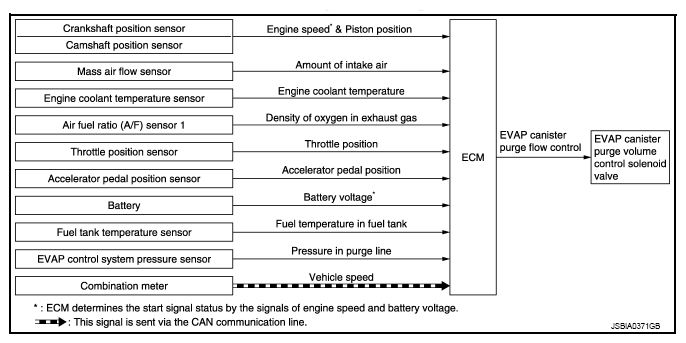

Fig 1: Evaporative Emission - System Diagram
G08256993Courtesy of NISSAN NORTH AMERICA, INC.
