Removal and Installation: Installation

Note the following and install in the reverse order of removal: When installing control cable (1) to A/T shift selector assembly (2), check that control cable is fully pressed in with the ribbed (A) surface facing upward.

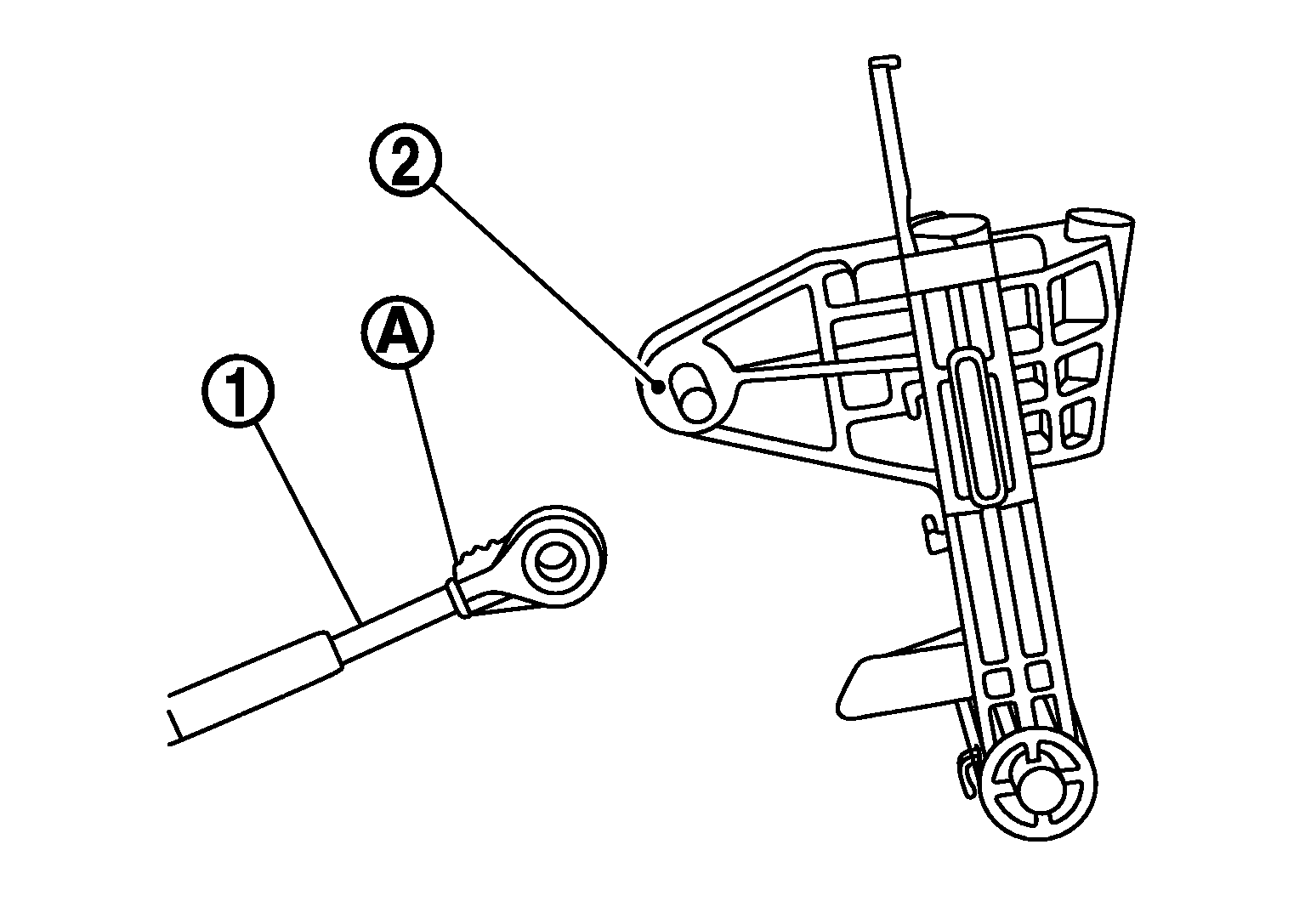

Fig 1: Identifying Control Cable, A/T Shift Selector Assembly And Ribbed

Courtesy of NISSAN NORTH AMERICA, INC.
