"R" Position

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

The front brake fastens the front sun gear.
The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.
The reverse brake fastens the rear carrier.

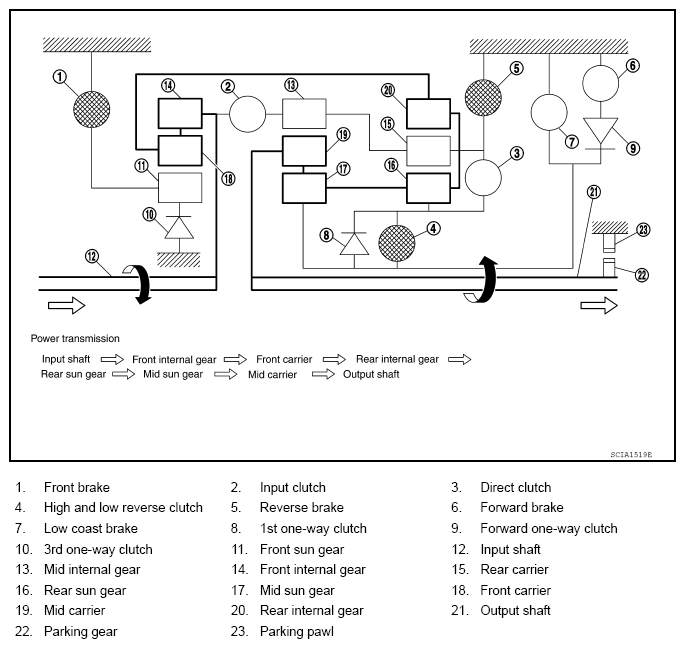

Fig 1: Power Transmission Diagram (R Position)

Courtesy of NISSAN NORTH AMERICA, INC.
