Assembly (2)

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

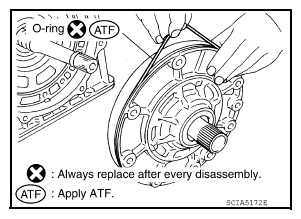

  1. Install O-ring to oil pump assembly.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
    Fig 1: Removing/Installing Oil Pump Assembly O-Ring
    G08713337Courtesy of NISSAN NORTH AMERICA, INC.
  2. Install bearing race to oil pump assembly.
    CAUTION: Apply petroleum jelly to bearing race.

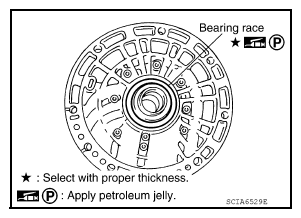

    Fig 2: Identifying Oil Pump Assembly Bearing Race
    G08713338Courtesy of NISSAN NORTH AMERICA, INC.

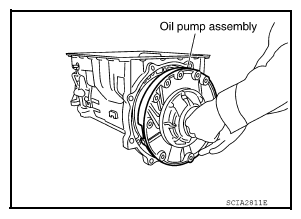

  3. Install oil pump assembly in transmission case.
    CAUTION: Apply ATF to oil pump bearing.
    Fig 3: Installing Oil Pump Assembly In Transmission Case
    G08713339Courtesy of NISSAN NORTH AMERICA, INC.
  4. Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown below.
    CAUTION: Completely remove all moisture, oil, old sealant and any foreign material from the oil pump bolts and oil pump bolt mating surfaces.

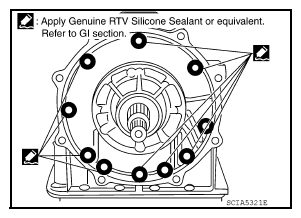

    Fig 4: Identifying Sealant Applying Areas On Oil Pump Assembly
    G08713340Courtesy of NISSAN NORTH AMERICA, INC.

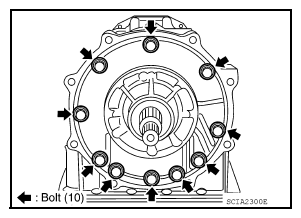

  5. Tighten oil pump bolts to specified torque.

    Oil pump bolts: 48 N.m (4.9 kg-m, 35 ft-lb)

    CAUTION: Apply ATF to oil pump bushing.
    Fig 5: Locating Transmission Case Bolts
    G08713341Courtesy of NISSAN NORTH AMERICA, INC.

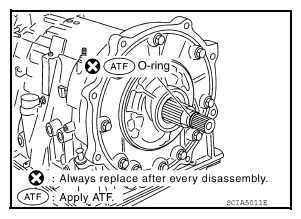

  6. Install O-ring to input clutch assembly.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
    Fig 6: Identifying Input Clutch Assembly O-Ring
    G08713342Courtesy of NISSAN NORTH AMERICA, INC.
  7. Install converter housing to transmission case and tighten bolts to specified torque.

    Converter housing bolt: 52 N.m (5.3 kg-m, 38 ft-lb)

    Self-sealing bolt (A): 61 N.m (6.2 kg-m, 45 ft-lb)

    CAUTION: Do not reuse self-sealing bolt (A).

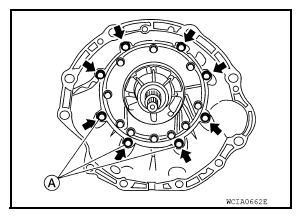

    Fig 7: Locating Self-Sealing Bolts
    G08713343Courtesy of NISSAN NORTH AMERICA, INC.

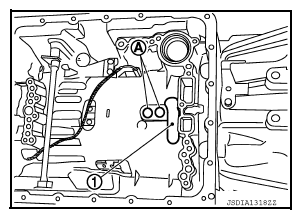

  8. Make sure that brake band (1) does not close input speed sensor hole (A).
    Fig 8: Identifying Brake Band And Input Speed Sensor Hole
    G08713344Courtesy of NISSAN NORTH AMERICA, INC.
  9. Connect TCM connector (1) and transmission range switch connector (2).

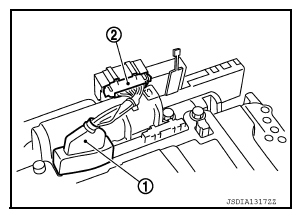

    Fig 9: Identifying TCM Connector And Transmission Range Switch Connector
    G08713345Courtesy of NISSAN NORTH AMERICA, INC.
  10. Install A/T assembly harness connector to control valve with TCM.

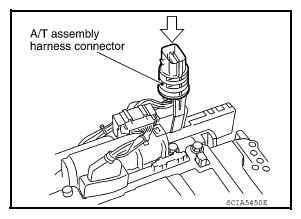

    Fig 10: Identifying A/T Assembly Harness Connector
    G08713346Courtesy of NISSAN NORTH AMERICA, INC.
  11. Connect TCM connectors.

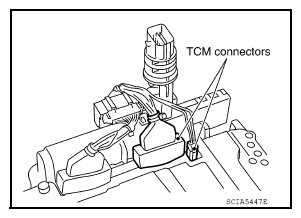

    Fig 11: Identifying TCM Connector
    G08713347Courtesy of NISSAN NORTH AMERICA, INC.
  12. Install O-ring to A/T assembly harness connector.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

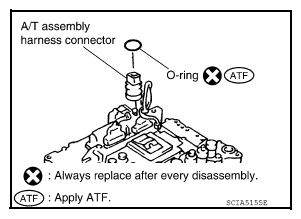

    Fig 12: Identifying A/T Assembly Harness Connector And O-Ring
    G08713348Courtesy of NISSAN NORTH AMERICA, INC.
  13. Install new O-ring (1) in plug (2).
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
    • O-ring should be free of contamination.

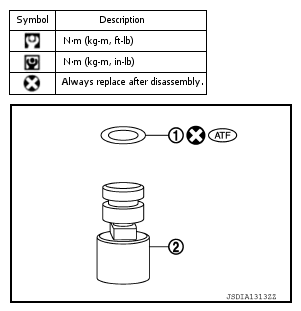

    Fig 13: Identifying O-Ring And Plug
    G08713349Courtesy of NISSAN NORTH AMERICA, INC.
  14. Install plug (2) to bracket (1).

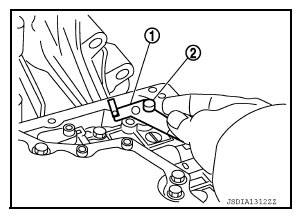

    Fig 14: Installing Plug To Bracket
    G08713350Courtesy of NISSAN NORTH AMERICA, INC.

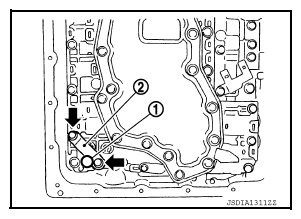

  15. Install plug (1) [with bracket (2)] to control valve with TCM and tighten bolt (<==) to specified torque.

    Bracket bolt: 7.9 N.m (0.81 kg-m, 70 in-lb)

    CAUTION: Adjust bolt hole of bracket to bolt hole of control valve.
    Fig 15: Locating Bracket Plug And Bolts
    G08713351Courtesy of NISSAN NORTH AMERICA, INC.
  16. Install control valve with TCM in transmission case.

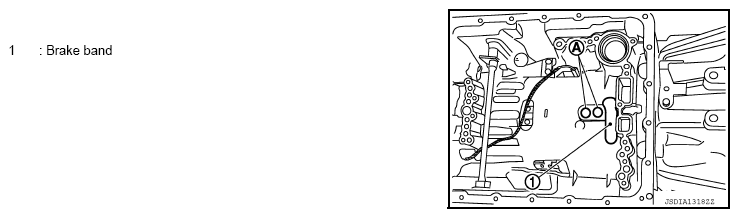

    Fig 16: Identifying Brake Band And Input Speed Sensor Hole
    G08713352Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Make sure that input speed sensor is securely installed into input speed sensor hole (A).
    • Hang down output speed sensor harness toward outside so as not to disturb installation of control valve with TCM.
    • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
    • Assemble it so that manual valve cutout is engaged with manual plate projection.

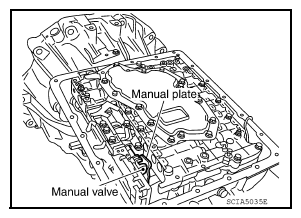

    Fig 17: Identifying Manual Valve And Manual Plate
    G08713353Courtesy of NISSAN NORTH AMERICA, INC.
  17. Install bolts (A), (B) and (C) to control valve with TCM.

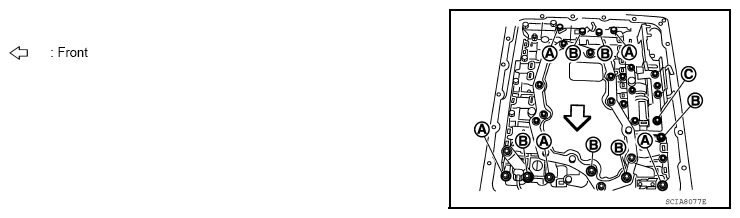

    Fig 18: Identifying Control Valve Mounting Bolts
    G08713354Courtesy of NISSAN NORTH AMERICA, INC.
    Bolt symbol Length mm (in) Number of bolts
    A 42 (1.65) 5
    B 55 (2.17) 6
    C 40 (1.57) 1
  18. Tighten bolt (1A), (2B) and (3A) temporarily to prevent dislocation. After that tighten them in order (A → B → C), and then tighten other bolts.

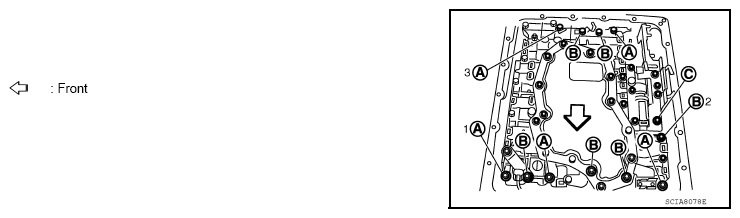

    Fig 19: Control Valve Bolt Tightening Sequence
    G08713355Courtesy of NISSAN NORTH AMERICA, INC.
    Bolt symbol A B C
    Number of bolts 5 6 1
    Length mm (in) 42 (1.65) 55 (2.17) 40 (1.57)
    Tightening torque N.m (km-g, in-lb) 7.9 (0.81, 70) With ATF applied
    7.9 (0.81, 70)
  19. Connect output speed sensor connector (1).

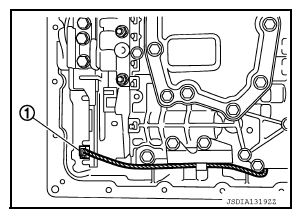

    Fig 20: Identifying Output Speed Sensor Connector
    G08713356Courtesy of NISSAN NORTH AMERICA, INC.
  20. Securely fasten output speed sensor harness with terminal clip (<==).

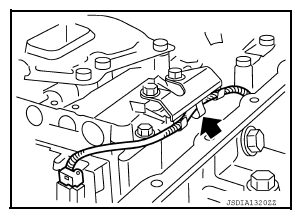

    Fig 21: Locating Output Speed Sensor Harness Terminal Clip
    G08713357Courtesy of NISSAN NORTH AMERICA, INC.
  21. Securely fasten output speed sensor harness with terminal clip.
  22. Pull down A/T assembly harness connector.
    CAUTION: Do not damage connector.

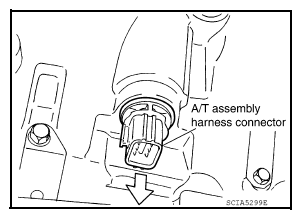

    Fig 22: Identifying A/T Assembly Harness Connector
    G08713358Courtesy of NISSAN NORTH AMERICA, INC.
  23. Install snap ring to A/T assembly harness connector.

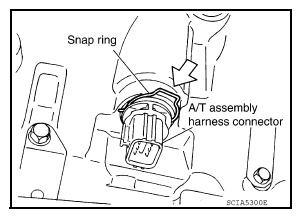

    Fig 23: Identifying A/T Assembly Harness Connector And Snap Ring
    G08713359Courtesy of NISSAN NORTH AMERICA, INC.

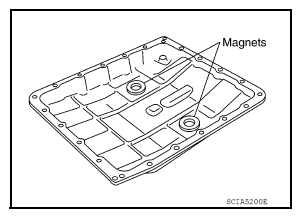

  24. Install magnets in oil pan.
    Fig 24: Identifying Magnets
    G08713360Courtesy of NISSAN NORTH AMERICA, INC.
  25. Install oil pan to transmission case. Refer to "REMOVAL AND INSTALLATION ".
  26. Install torque converter.

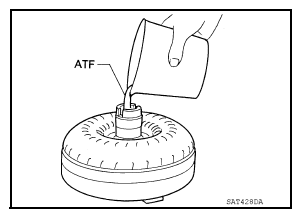

    1. Pour ATF into torque converter.
      NOTE:
      • Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is required for a new torque converter.
      • When reusing old torque converter, add the same amount of fluid as was drained.
      Fig 25: Pouring ATF Into Torque Converter
      G08713361Courtesy of NISSAN NORTH AMERICA, INC.
    2. Install torque converter while aligning notches of torque converter with notches of oil pump.
      CAUTION: Install torque converter while rotating it.

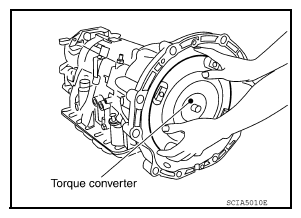

      Fig 26: Installing Torque Converter
      G08713362Courtesy of NISSAN NORTH AMERICA, INC.
    3. Measure distance "A" to make sure that torque converter is in proper position.

      Distance "A": 25.0 mm (0.98 in) or more

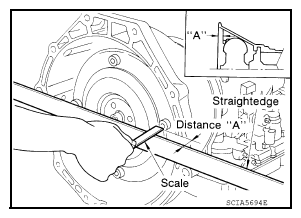

      Fig 27: Measuring Torque Converter Distance From Transmission Housing End
      G08713363Courtesy of NISSAN NORTH AMERICA, INC.
