Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Install input clutch.
1. Install drive plates, driven plates and retaining plate in input clutch drum.
  CAUTION: Take care with order of plates.
  - Snap ring (1)
  - Retaining plate (2)
  - Drive plate (3)
  - Driven plate (4)
  - Driveplate/Driven plate: 7/7

    Fig 1: Identifying Retaining Plate, Drive Plate, Driven Plate And Snap Ring
    Courtesy of NISSAN NORTH AMERICA, INC.
2. Install snap ring in input clutch drum using suitable tool.

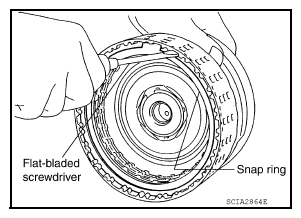

  Fig 2: Removing/Installing Input Clutch Drum Snap Ring
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Install needle bearing in input clutch assembly.
  CAUTION: Apply petroleum jelly to needle bearing.

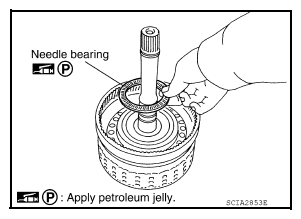

  Fig 3: Removing/Installing Input Clutch Assembly Needle Bearing
  Courtesy of NISSAN NORTH AMERICA, INC.
4. Install O-ring and seal rings in input clutch assembly.
  CAUTION:
  - Do not reuse O-ring and seal rings.
  - Apply ATF to O-ring.
  - Apply petroleum jelly to seal rings.

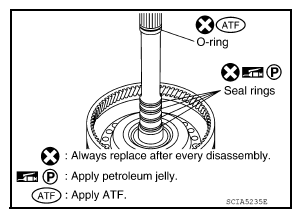

  Fig 4: Identifying Input Clutch Assembly O-Ring And Seal Rings
  Courtesy of NISSAN NORTH AMERICA, INC.
Install front carrier assembly.
1. Install snap ring to front carrier assembly.
  CAUTION: Do not excessively expand snap ring.

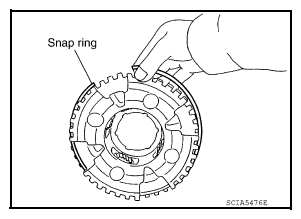

  Fig 5: Removing/Installing Front Carrier Assembly Snap Ring
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Install needle bearing in front carrier assembly.
  CAUTION:
  - Take care with the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".
  - Apply petroleum jelly to bearing race.

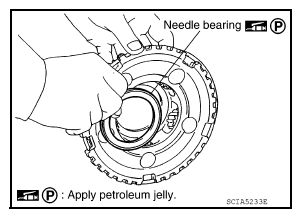

  Fig 6: Removing/Installing Front Carrier Assembly Needle Bearing
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Install bearing race in front carrier assembly.
  CAUTION: Apply petroleum jelly to bearing race.
4. Install front carrier assembly to input clutch assembly.

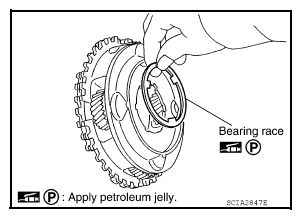

  Fig 7: Removing/Installing Bearing Race From Front Carrier Assembly
  Courtesy of NISSAN NORTH AMERICA, INC.
Compress snap ring using 2 flat-bladed screwdrivers.
Install front carrier assembly and input clutch assembly to rear internal gear.

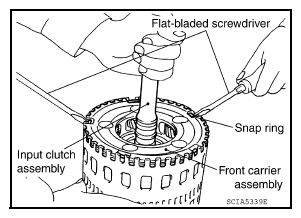

Fig 8: Removing/Installing Front Carrier Assembly And Input Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
