Exploded View

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

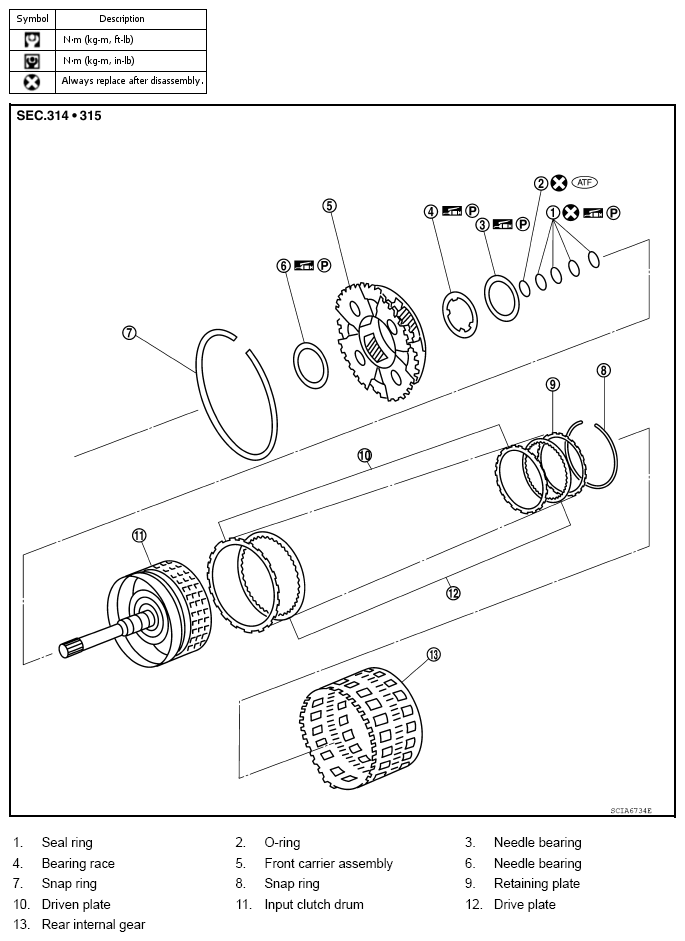

Fig 1: Exploded View Of Front Carrier, Input Clutch And Rear Internal Gear
G08713225Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.
