Exploded View

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

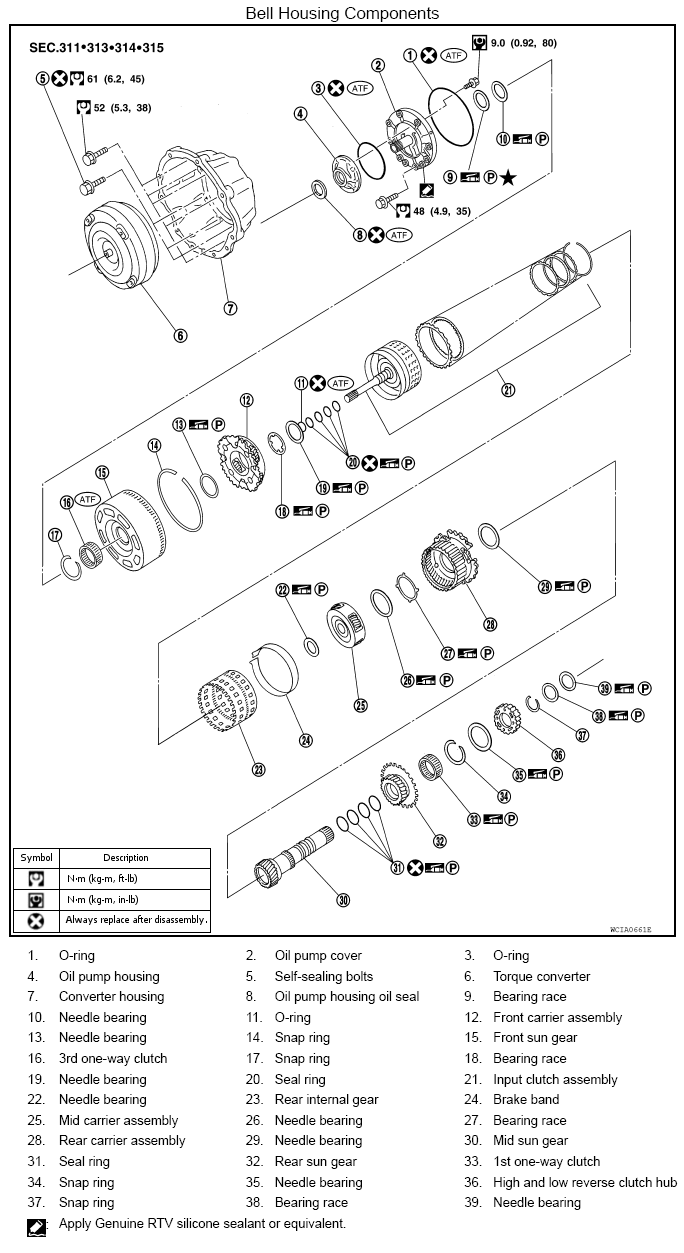

Fig 1: Bell Housing Components With Torque Specifications
G08713124Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols not described on the above.

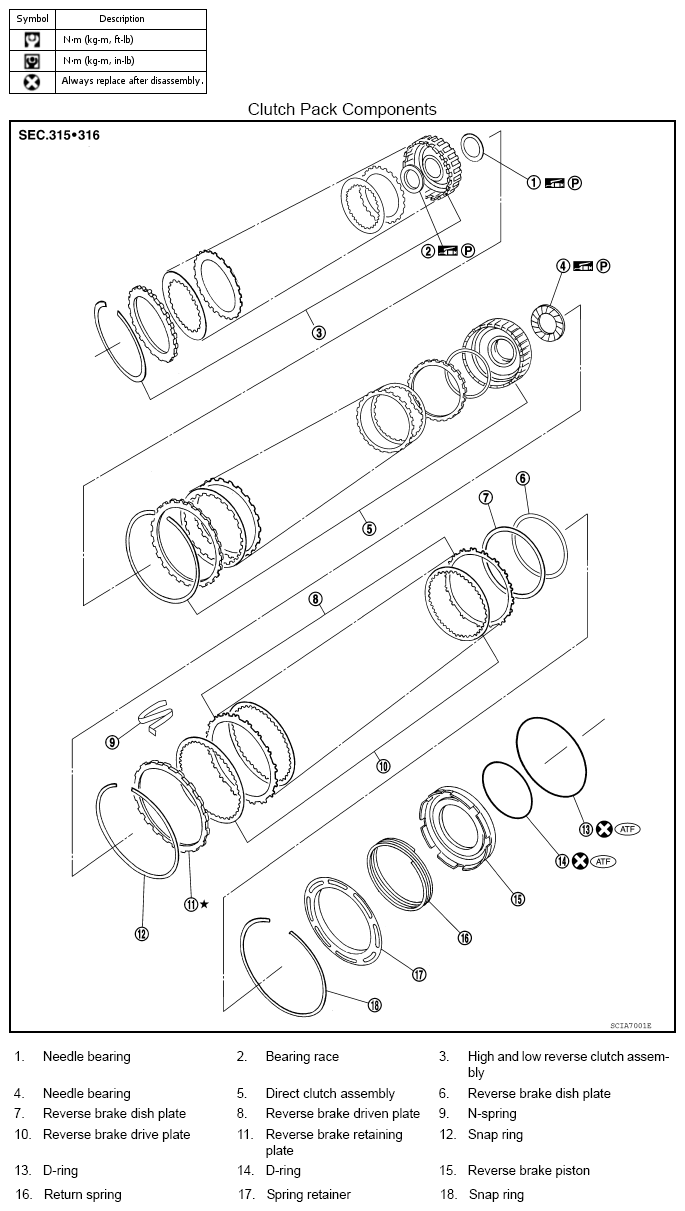

Fig 2: Clutch Pack Components
G08713125Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.

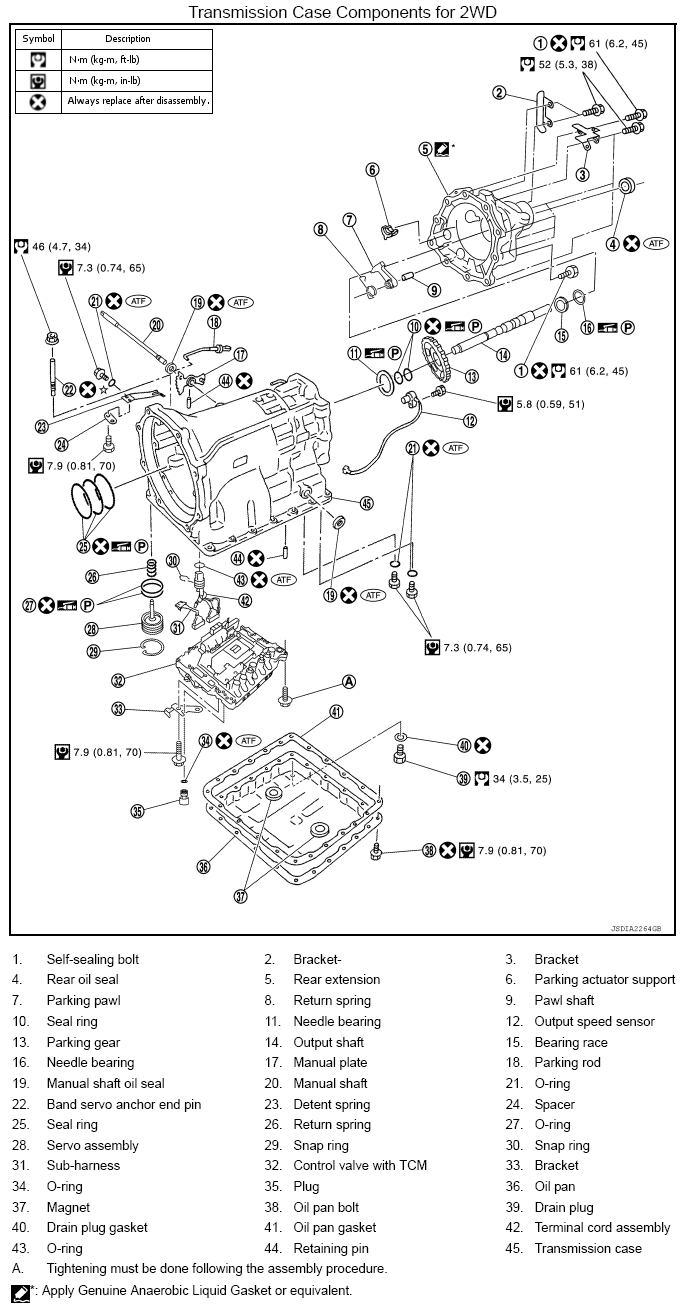

Fig 3: Transmission Case Components With Torque Specifications (2WD)
G08713126Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols not described on the above.

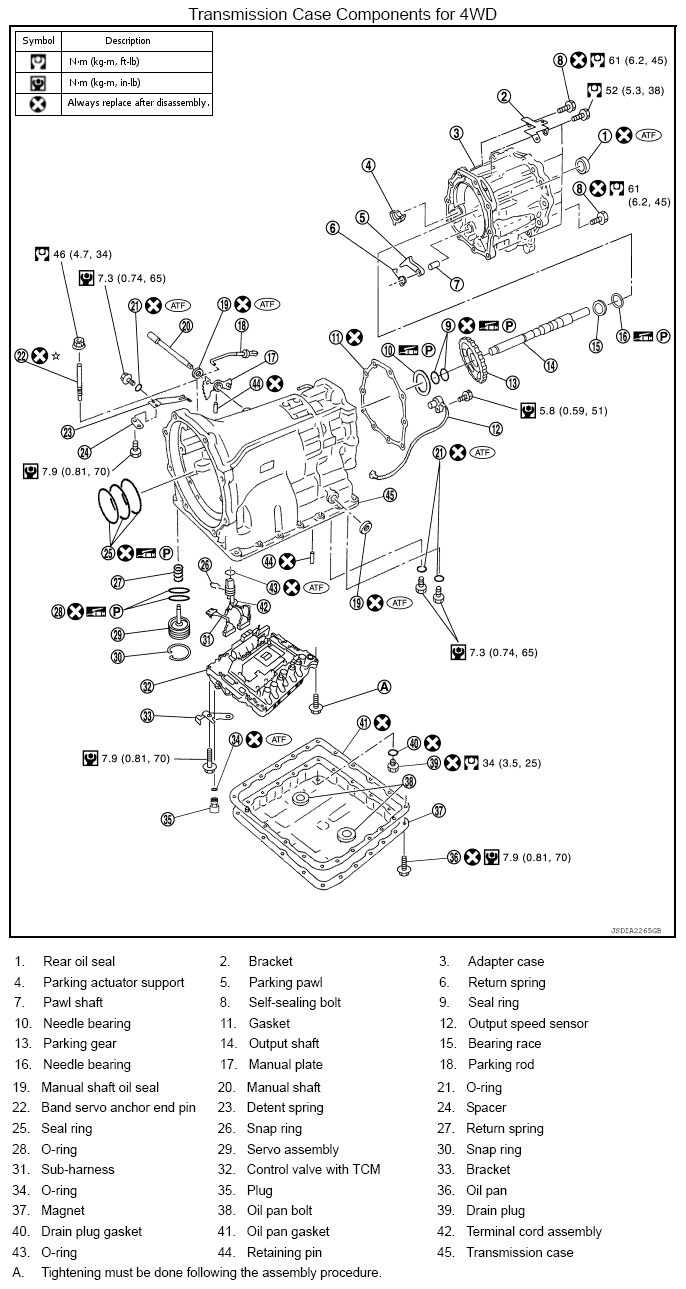

Fig 4: Transmission Case Components With Torque Specifications (4WD)
G08713127Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.
