Transmission Assembly: Disassembly

CAUTION: Never disassemble parts behind drum support. Refer to "CROSS-SECTIONAL VIEW ".

Drain ATF through drain plug.
Remove torque converter by holding it firmly and turning while pulling straight out.

Fig 1: Removing Torque Converter
Courtesy of NISSAN NORTH AMERICA, INC.

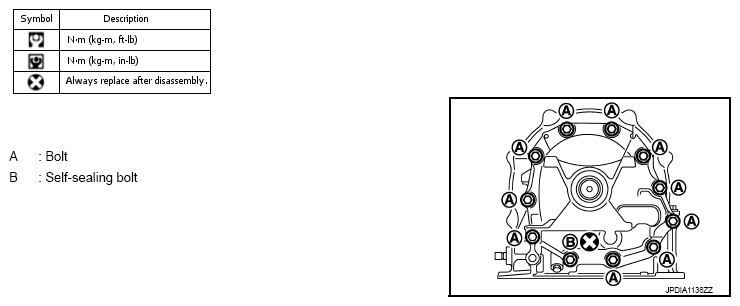

Remove tightening bolts (←) for converter housing and transmission case.
Remove converter housing from transmission case.
CAUTION: Be careful not to scratch converter housing.

Fig 2: Locating Converter Housing And Transmission Case Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove O-ring from input clutch assembly.

Fig 3: Identifying Input Clutch Assembly O-Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Remove tightening bolts (←) for oil pump assembly and transmission case.

Fig 4: Locating Oil Pump Assembly And Transmission Case Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.

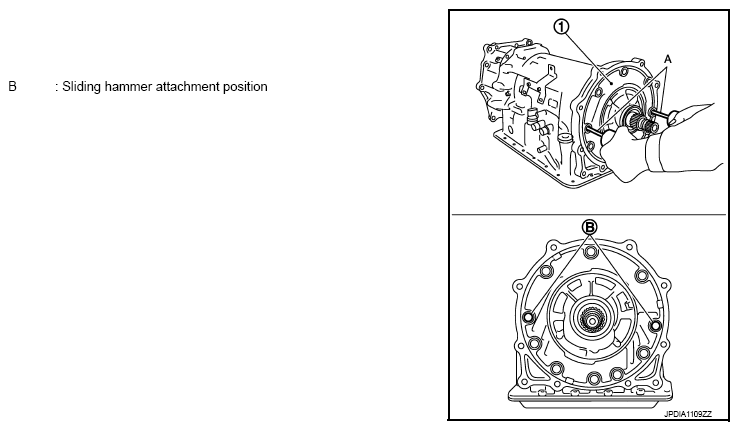

Attach the sliding hammers [SST: ST25850000 (J-25721-A)] (A) to oil pump assembly (1) and extract it evenly from transmission case.

Fig 5: Removing Oil Pump Assembly From Transmission Case Using Sliding Hammer
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Fully tighten the sliding hammer screws.
- Make sure that bearing race is installed to the oil pump assembly edge surface.
Remove O-ring (1) from oil pump assembly.

Fig 6: Identifying Oil Pump Assembly O-Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Remove bearing race (1) from oil pump assembly.

Fig 7: Identifying Oil Pump Assembly Bearing Race
Courtesy of NISSAN NORTH AMERICA, INC.
Remove seal ring (1) from oil pump assembly.

Fig 8: Identifying Oil Pump Assembly Seal Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Remove under drive sun gear (1) from under drive carrier assembly.

Fig 9: Identifying Under Drive Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing (1) from under drive sun gear.

Fig 10: Removing Needle Bearing From Under Drive Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing (1) from under drive carrier assembly.

Fig 11: Identifying Under Drive Carrier Assembly Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
Remove front brake component part (retaining plates, drive plates and driven plate) from transmission case by using a wire (A) with its tip bent like a hook.

Fig 12: Removing Transmission Case Front Brake Component Part Using Wire
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring (1) from transmission case using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch transmission case and 1st one-way clutch.
- Be careful not to damage snap ring.
Fig 13: Removing Transmission Case Snap Ring Using Flatbladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Remove input clutch assembly (with 1st one-way clutch, under drive carrier assembly, front brake hub, front carrier assembly, and rear internal gear) (1) from transmission case.

Fig 14: Remove Input Clutch Assembly And Related Components From Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove 1st one-way clutch (1) from front brake hub.

Fig 15: Identifying 1st One-Way Clutch
Courtesy of NISSAN NORTH AMERICA, INC.
Remove under drive carrier assembly (with front brake hub) (1) from front carrier assembly.

Fig 16: Identifying Under Drive Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing (1) from front carrier assembly.

Fig 17: Removing Needle Bearing From Front Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove seal rings (1) from input clutch assembly.

Fig 18: Identifying Input Clutch Assembly Seal Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Remove mid carrier assembly and rear carrier assembly as a unit.

Fig 19: Identifying Mid Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove mid carrier assembly from rear carrier assembly.

Fig 20: Removing Mid Carrier Assembly From Rear Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing (front side) from mid carrier assembly.

Fig 21: Removing Needle Bearing From Mid Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing (rear side) from mid carrier assembly.

Fig 22: Removing Needle Bearing From Mid Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove bearing race from rear carrier assembly.

Fig 23: Removing Bearing Race From Rear Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing from rear carrier assembly.

Fig 24: Removing Needle Bearing From Rear Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove mid sun gear assembly, rear sun gear assembly, and high and low reverse clutch hub as a unit.
CAUTION: Be careful to remove then with bearing race and needle bearing.

Fig 25: Identifying Mid And Rear Sun Gear Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove high and low reverse clutch assembly from direct clutch assembly.
CAUTION: Make sure that needle bearing is installed to the high and low reverse clutch assembly edge surface.

Fig 26: Identifying High And Low Reverse Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove direct clutch assembly from reverse brake.

Fig 27: Identifying Reverse Brake Direct Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing from drum support.

Fig 28: Removing Needle Bearing From Drum Support
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring (1) from joint connector (A).

Fig 29: Removing Joint Connector Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Push joint connector (A).
CAUTION: Be careful not to damage connector.

Fig 30: Push Joint Connector
Courtesy of NISSAN NORTH AMERICA, INC.

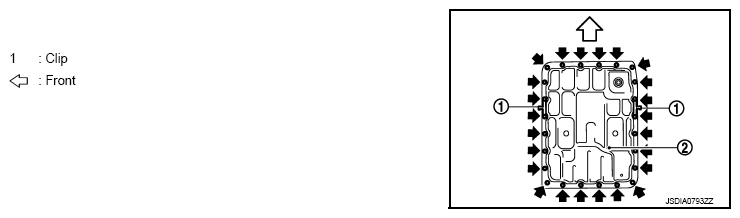

Remove oil pan mounting bolts (←).

Fig 31: Locating Oil Pan Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove oil pan (2) and oil pan gasket.
Remove magnets (1) from oil pan.

Fig 32: Identifying Oil Pan Magnets
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect output speed sensor connector (A).
CAUTION: Be careful not to damage connector.
Disengage terminal clips (←).

Fig 33: Locating Output Speed Sensor Connector Terminal Clips
Courtesy of NISSAN NORTH AMERICA, INC.

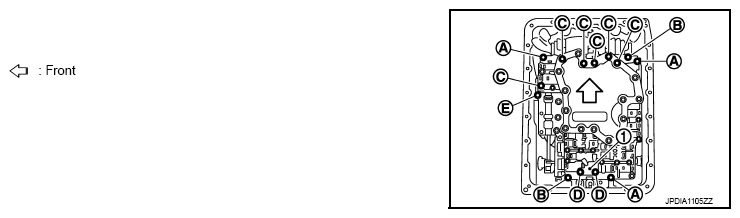

Remove control valve & TCM mounting bolts and clip (1) from the control valve & TCM.

Fig 34: Identifying TCM Mounting Bolts And Clip

G08740286

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol

Length mm (in)

Number of bolts

A

43 (1.69)

3

B

40 (1.57)

2

C

54 (2.13)

6

D

50 (1.97)

2

E⁽¹⁾

50 (1.97)

1

⁽¹⁾	Reamer bolt

Remove the control valve & TCM (1) from transmission case.
CAUTION: When removing, never with the manual valve notch and manual plate height. Remove it vertically.

Fig 35: Removing Control Valve And TCM From Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove joint connector (1) from the control valve & TCM using a flat-bladed screwdriver (A).

Fig 36: Removing Joint Connector From Control Valve And TCM Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect TCM connector (A).
CAUTION: Be careful not to damage connector.

Fig 37: Disconnecting TCM Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Remove tightening bolts for rear extension assembly and transmission case.

Fig 38: Identifying Rear Extension Assembly And Transmission Case Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Tap rear extension assembly using a soft hammer.
CAUTION: Be careful not to damage rear extension.

Fig 39: Tapping Rear Extension Assembly Using Soft Hammer
Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear extension assembly from transmission case. (With needle bearing.)

Fig 40: Removing Rear Extension Assembly From Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove bearing race from output shaft.

Fig 41: Removing Output Shaft Bearing Race
Courtesy of NISSAN NORTH AMERICA, INC.
Remove output shaft from transmission case by rotating left/right.

Fig 42: Removing Transmission Case Output Shaft
Courtesy of NISSAN NORTH AMERICA, INC.
Remove parking gear (1) from output shaft (2).

Fig 43: Removing Output Shaft Parking Gear
Courtesy of NISSAN NORTH AMERICA, INC.

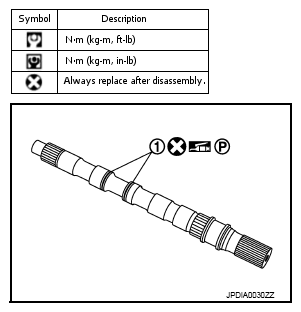

Remove seal rings (1) from output shaft.

Fig 44: Identifying Output Shaft Seal Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing from transmission case.

Fig 45: Identifying Transmission Case Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.

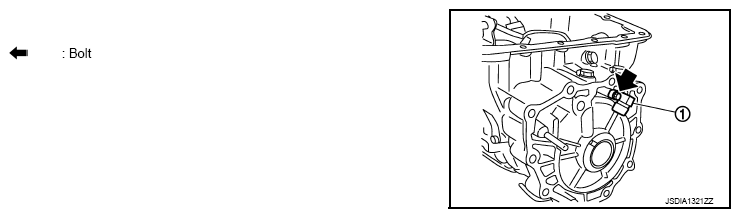

Remove output speed sensor (1) from transmission case.

Fig 46: Locating Transmission Case Output Speed Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Never subject it to impact by dropping or hitting it.
- Never disassemble.
- Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Never place in an area affected by magnetism.
Remove reverse brake snap ring (fixing plate) with 2 flat-bladed screwdrivers.
CAUTION:
- Be careful not to scratch transmission case and reverse brake retaining plate.
- Be careful not to damage snap ring.
NOTE: Press out snap ring from the transmission case oil pan side gap with a flat-bladed screwdriver, and remove it using a another screw driver.
Remove reverse brake retaining plate from transmission case.

Fig 47: Removing Reverse Brake Snap Ring Using Flat-Bladed Screwdrivers
Courtesy of NISSAN NORTH AMERICA, INC.
Remove N-spring from transmission case.

Fig 48: Identifying Drive And Driven Plate, N-Spring And Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove reverse brake component part (drive plates, driven plates, and dish plates) from transmission case.

Fig 49: Removing Transmission Case Reverse Brake Component Parts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring (fixing spring retainer) using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch transmission case and spring retainer.
- Be careful not to damage snap ring.
Fig 50: Identifying Snap Ring (Fixing Spring Retainer)
Courtesy of NISSAN NORTH AMERICA, INC.
Remove reverse brake spring retainer and reverse brake return spring from transmission case.

Fig 51: Identifying Reverse Brake Spring Retainer
Courtesy of NISSAN NORTH AMERICA, INC.
Remove seal rings from drum support.

Fig 52: Identifying Drum Support Seal Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing from drum support edge surface.

Fig 53: Identifying Drum Support Edge Surface Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.

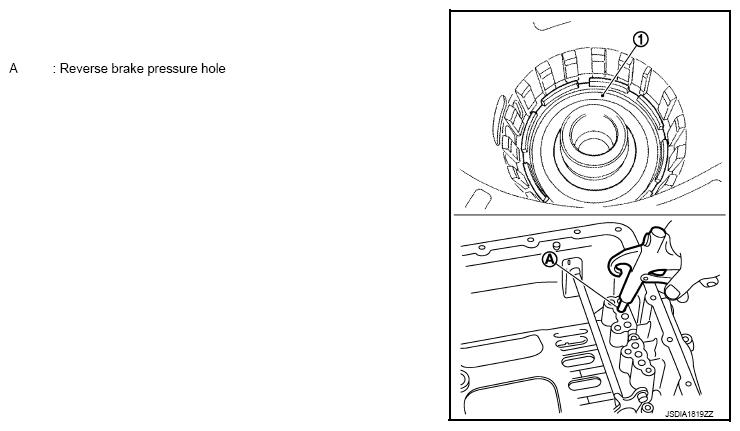

Remove reverse brake piston (1) from transmission case with compressed air. Refer to "OIL CHANNEL ".

Fig 54: Removing Transmission Case Reverse Brake Piston
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Care should be taken not to abruptly blow air. It makes pistons incline, as the result, it becomes hard to disassemble the pistons.
Remove D-rings from reverse brake piston.

Fig 55: Identifying Reverse Brake Piston D-Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Remove manual shaft retaining pin with pair of nippers.
CAUTION: Be careful not to cut retaining pin.

Fig 56: Removing Manual Shaft Retaining Pin With Pair Of Nippers
Courtesy of NISSAN NORTH AMERICA, INC.
Remove manual plate (1) from detent spring (2).
Remove parking rod (3) from manual plate.
Install manual plate to detent spring.

Fig 57: Identifying Manual Plate, Detent Spring And Parking Rod
Courtesy of NISSAN NORTH AMERICA, INC.
Use a pin punch [4 mm (0.16 in) dia. commercial service tool] to knock out retaining pin (1).

Fig 58: Identifying Knock Out Retaining Pin
Courtesy of NISSAN NORTH AMERICA, INC.
Remove manual plate from manual shaft.

Fig 59: Removing Manual Plate From Shaft
Courtesy of NISSAN NORTH AMERICA, INC.
Remove manual shaft from transmission case.

Fig 60: Removing Manual Shaft From Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove manual shaft oil seals using a flat-bladed screwdriver.
CAUTION: Be careful not to scratch transmission case.

Fig 61: Removing Manual Shaft Oil Seals Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Remove detent spring (1) from transmission case.

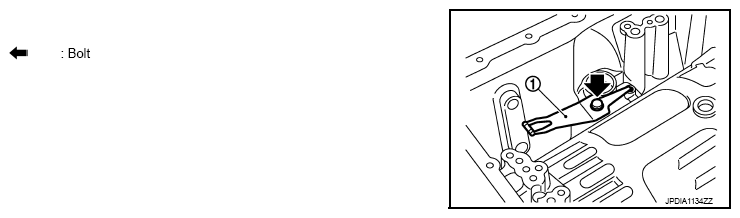

Fig 62: Locating Transmission Case Detent Spring Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing (1) from rear extension.

Fig 63: Identifying Rear Extension Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
Remove parking actuator support from rear extension.

Fig 64: Removing Rear Extension Parking Actuator Support
Courtesy of NISSAN NORTH AMERICA, INC.
Remove parking pawl (with return spring) and pawl shaft from rear extension.

Fig 65: Removing Rear Extension Parking Pawl And Pawl Shaft
Courtesy of NISSAN NORTH AMERICA, INC.
Remove return spring (1) from parking pawl (2).

Fig 66: Identifying Return Spring And Parking Pawl
Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear oil seal from rear extension using a flat-bladed screwdriver.

CAUTION: Be careful not to scratch rear extension.

Fig 67: Removing Rear Oil Seal From Rear Extension Using Flat-Bladed Screwdriver

G04875966

Courtesy of NISSAN NORTH AMERICA, INC.
