AWD Models

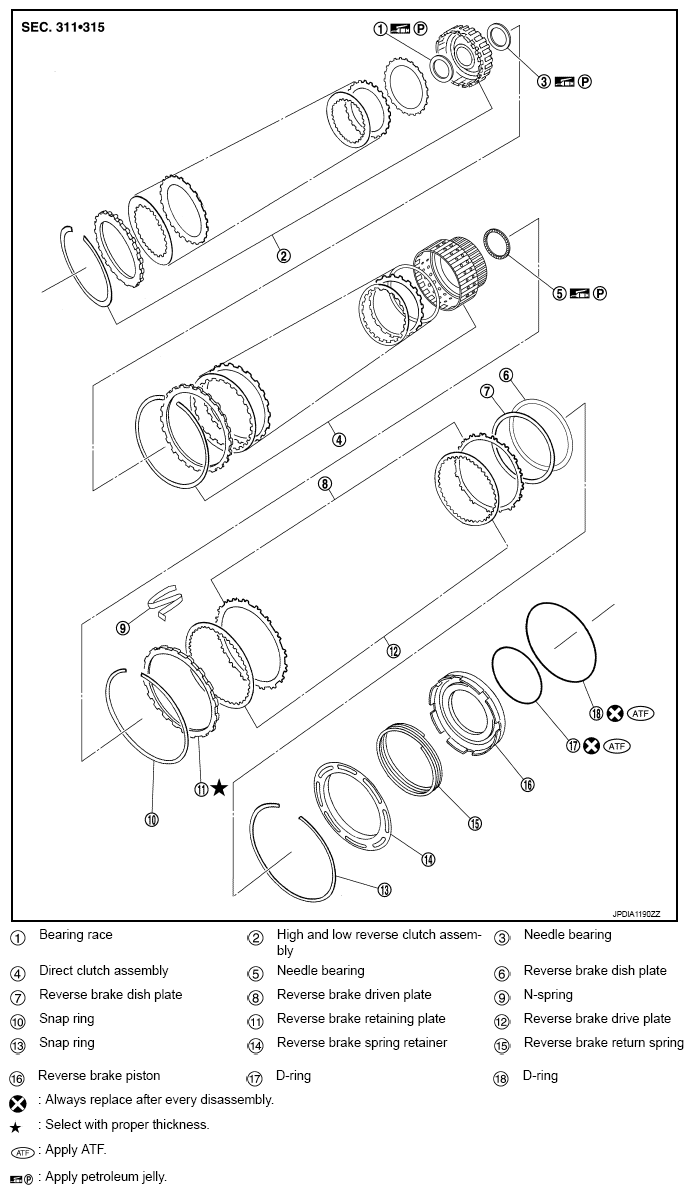

Fig 1: Exploded View Of Transmission Assembly - AWD Models (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

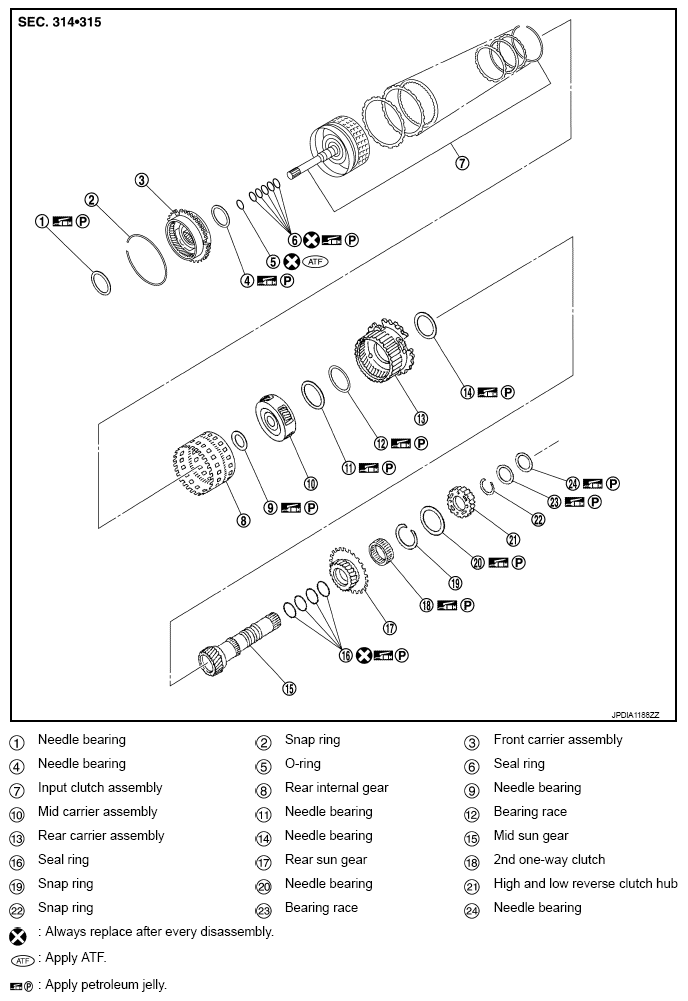

Fig 2: Exploded View Of Transmission Assembly - AWD Models (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

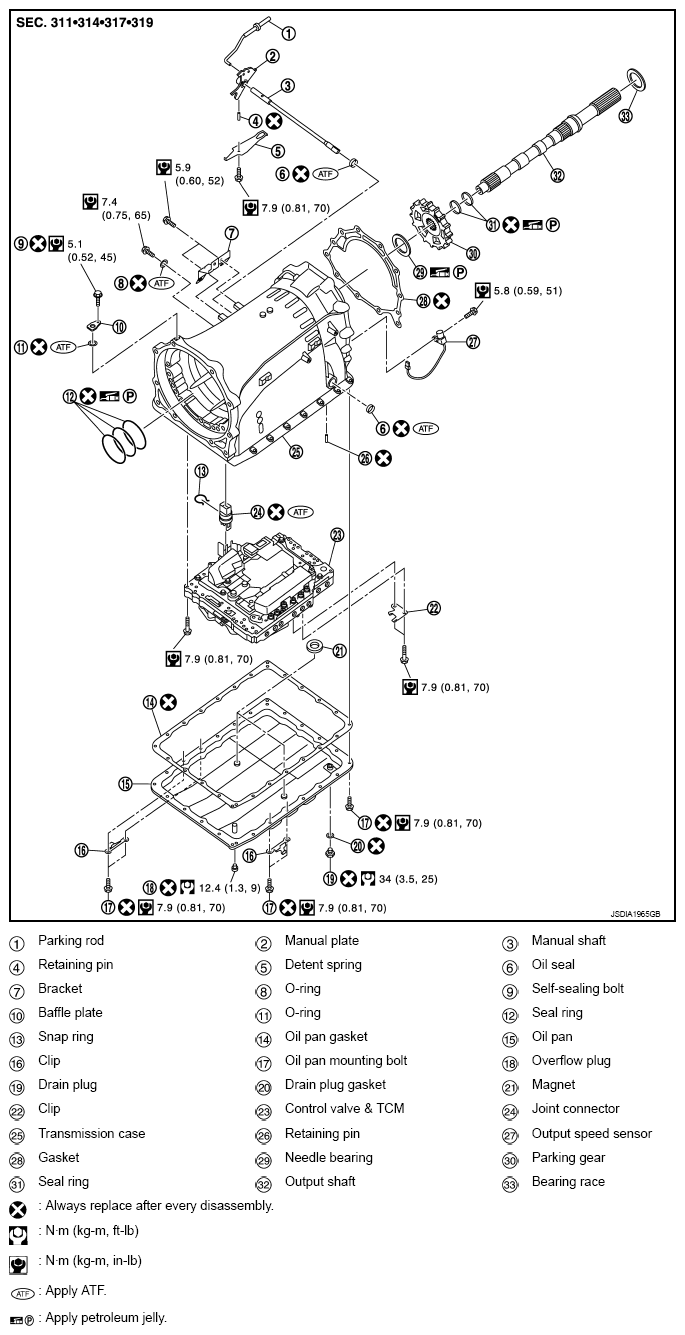

Fig 3: Exploded View Of Transmission Assembly - AWD Models (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

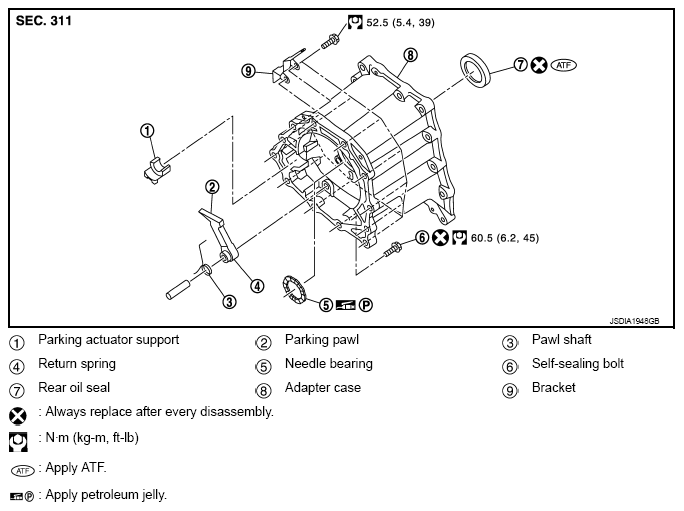

Fig 4: Exploded View Of Transmission Assembly - AWD Models (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

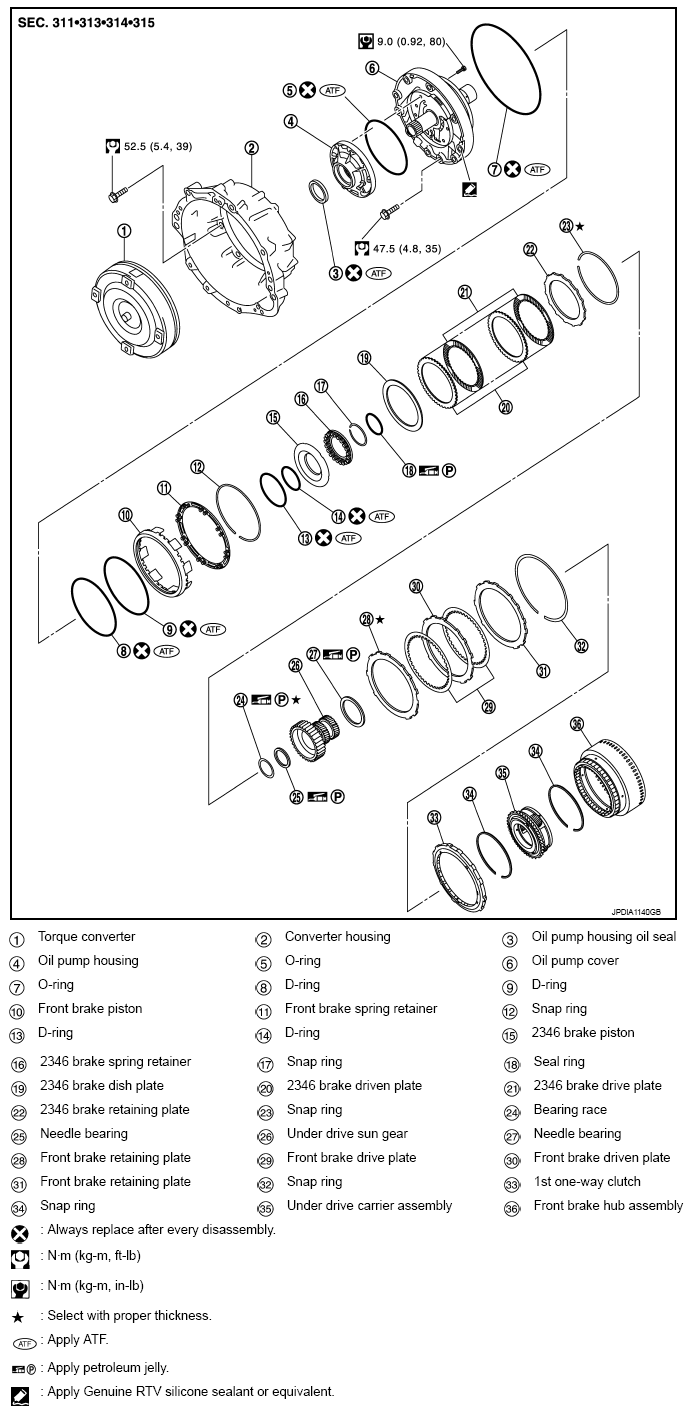

Fig 5: Exploded View Of Transmission Assembly With Torque Specifications - AWD Models (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
