Steering Angle Main Control Module DTC Index

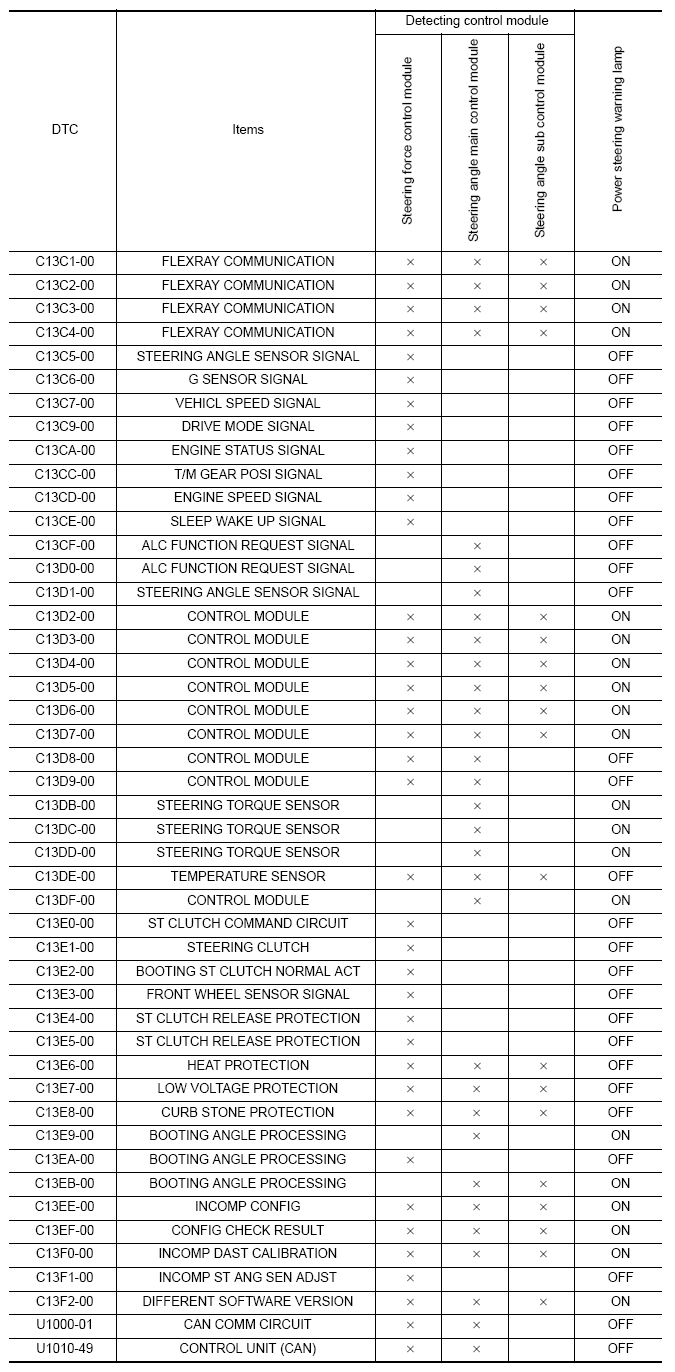

Fig 1: DTC Index Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

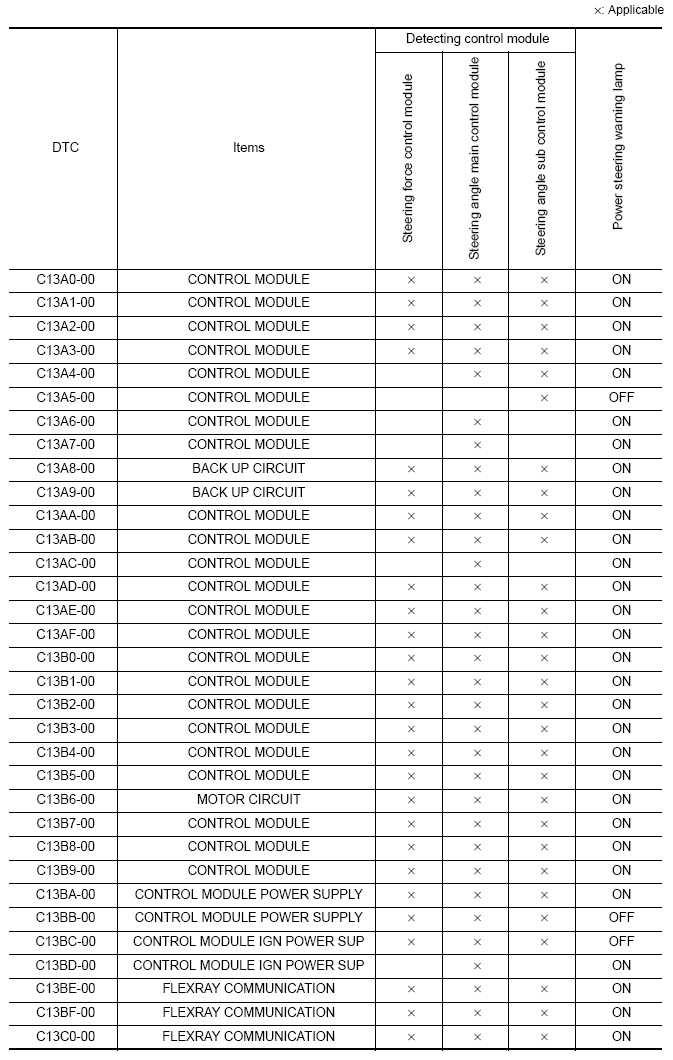

Fig 2: DTC Index Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: If two or more DTCs are detected, refer to "DTC INSPECTION PRIORITY CHART ".
