System Diagram

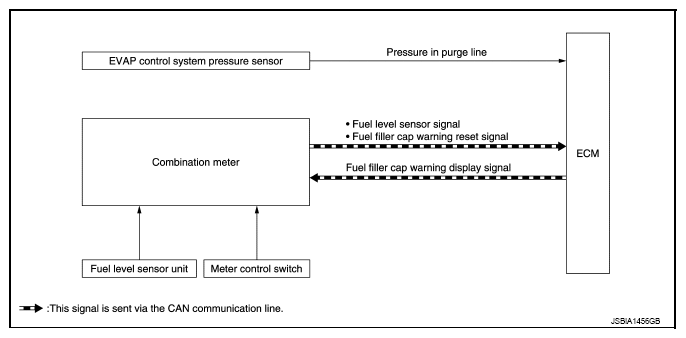

Fig 1: Information Display (Combination Meter) Fuel Filler Cap Warning System Diagram
G09159977Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: For details about the fuel filler cap warning system, refer to "FUEL FILLER CAP WARNING SYSTEM: SYSTEM DESCRIPTION ".
