Fuel Pressure Check

1. Release fuel pressure to zero.
2. Install the inline fuel quick disconnected fitting (A) between fuel damper (1) and injector tube.
   CAUTION: Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.

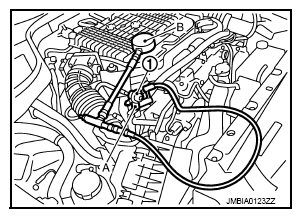

   Fig 1: Checking Fuel Pressure Using Fuel Pressure Gauge Kit

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE:

   • Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pressure cannot be completely released because this models do not have fuel return system.
   • Use Fuel Pressure Gauge Kit (J-44321) to check fuel pressure.
3. Connect pressure gauge (B) to fuel pressure check adapter.
4. Turn ignition switch ON and check for fuel leakage.
5. Start engine and check for fuel leakage.
6. Read the indication of fuel pressure gauge.

   At idling: Approximately 350 kPa (3.5 bar, 3.57 kg/cm ²  , 51 psi)

   Is the inspection result normal?

   YES: INSPECTION END

   NO: GO TO 2.

If result is unsatisfactory, check fuel hoses and fuel tubes for clogging.

Is the inspection result normal?

YES: Replace "fuel filter and fuel pump assembly". Refer to "REMOVAL AND INSTALLATION ".

NO: Repair or replace.
