Engine Coolant Temperature Sensor

The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

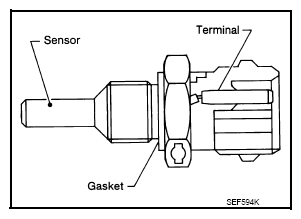

Fig 1: Identifying Engine Coolant Temperature Sensor, Gasket And Terminals

Courtesy of NISSAN NORTH AMERICA, INC.

TEMPERATURE RESISTANCE REFERENCE DATA

Engine coolant temperature [°C (°F)]

Voltage⁽¹⁾ (V)

Resistance (kΩ)

-10 (14)

4.4

7.0 - 11.4

20 (68)

3.5

2.10 - 2.90

50 (122)

2.2

0.68 - 1.00

90 (194)

0.9

0.236 - 0.260

⁽¹⁾	These data are reference values and are measured between ECM terminals 71 (Engine coolant temperature sensor) and 84 (Sensor ground).

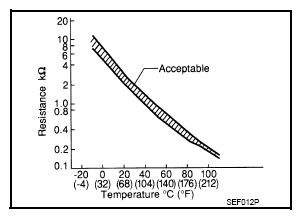

Fig 2: Engine Coolant Temperature Sensor Resistance Graph

Courtesy of NISSAN NORTH AMERICA, INC.
