ENGINE CONTROL SYSTEM: Circuit Diagram

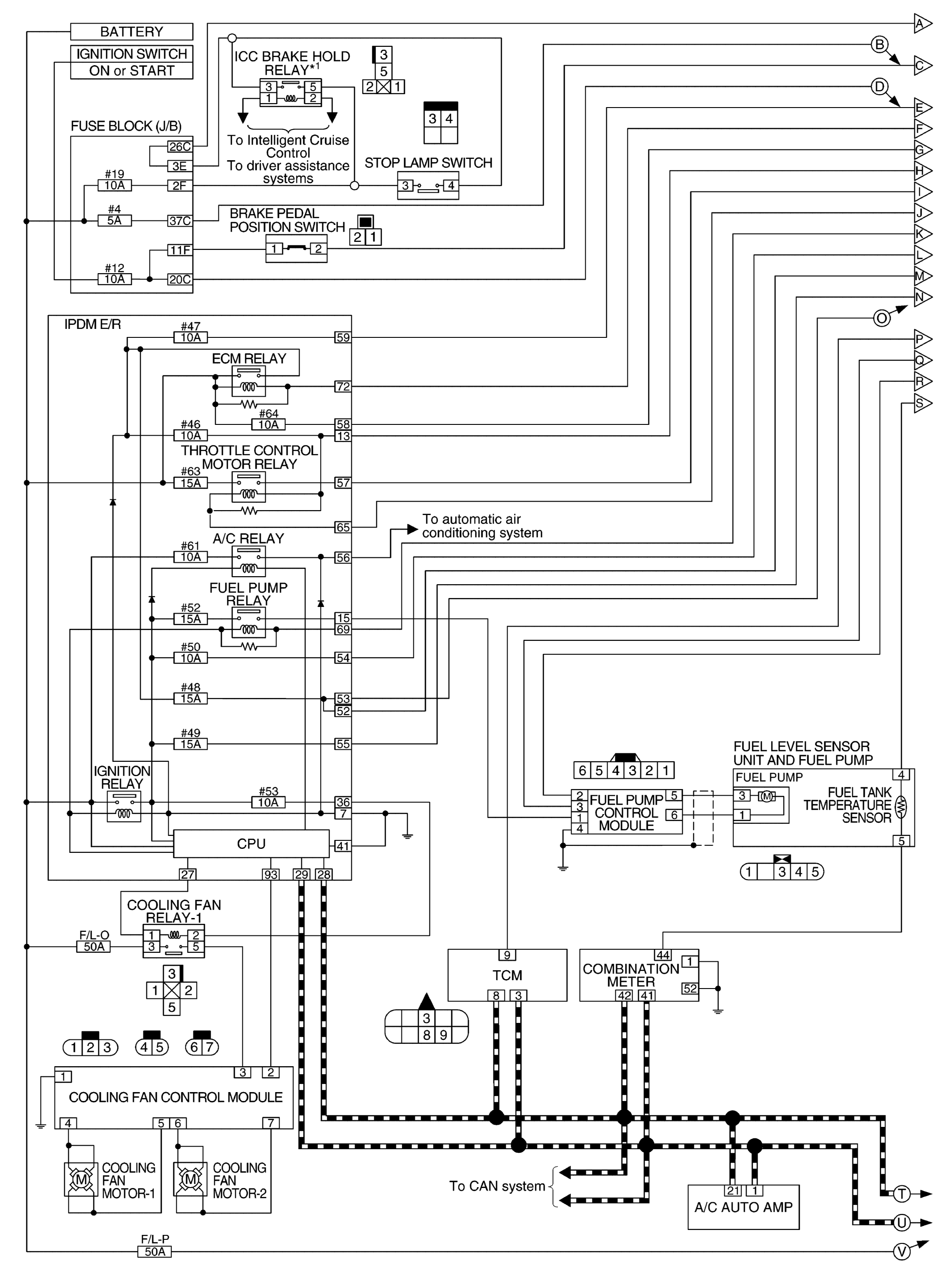

Fig 1: Engine Control System Circuit Diagram (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

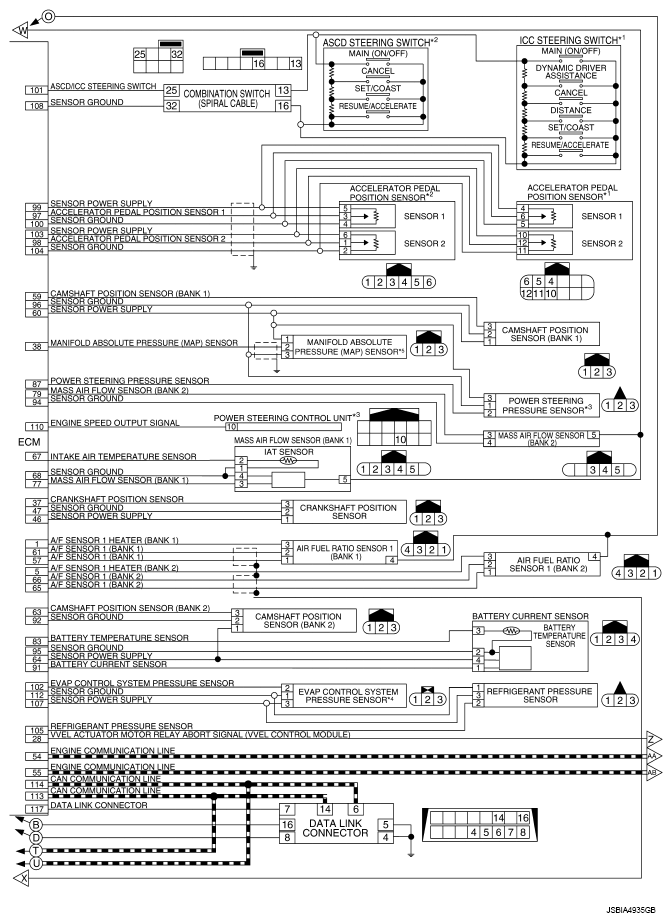

Fig 2: Engine Control System Circuit Diagram (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

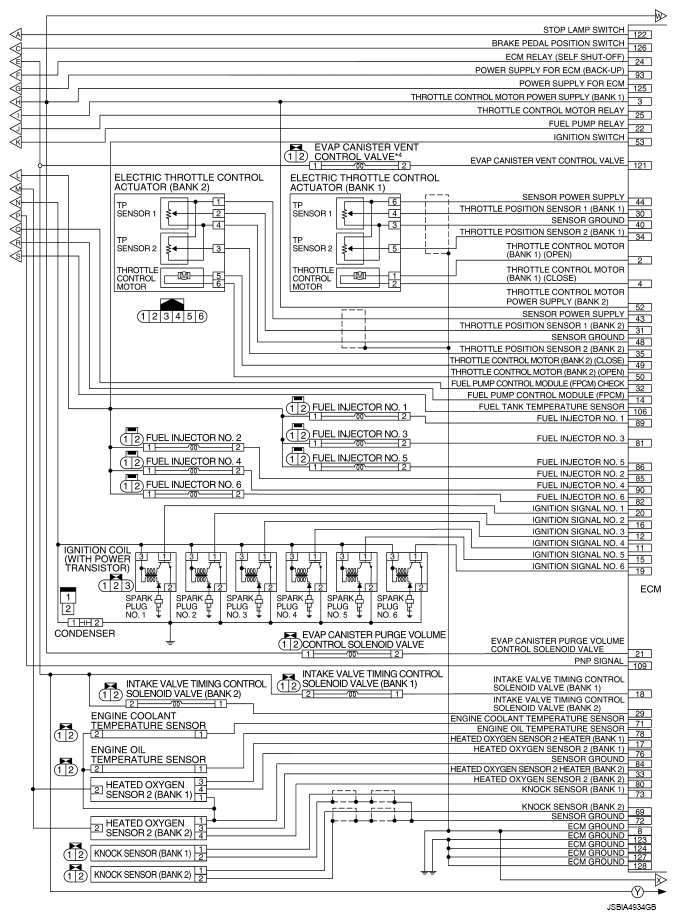

Fig 3: Engine Control System Circuit Diagram (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

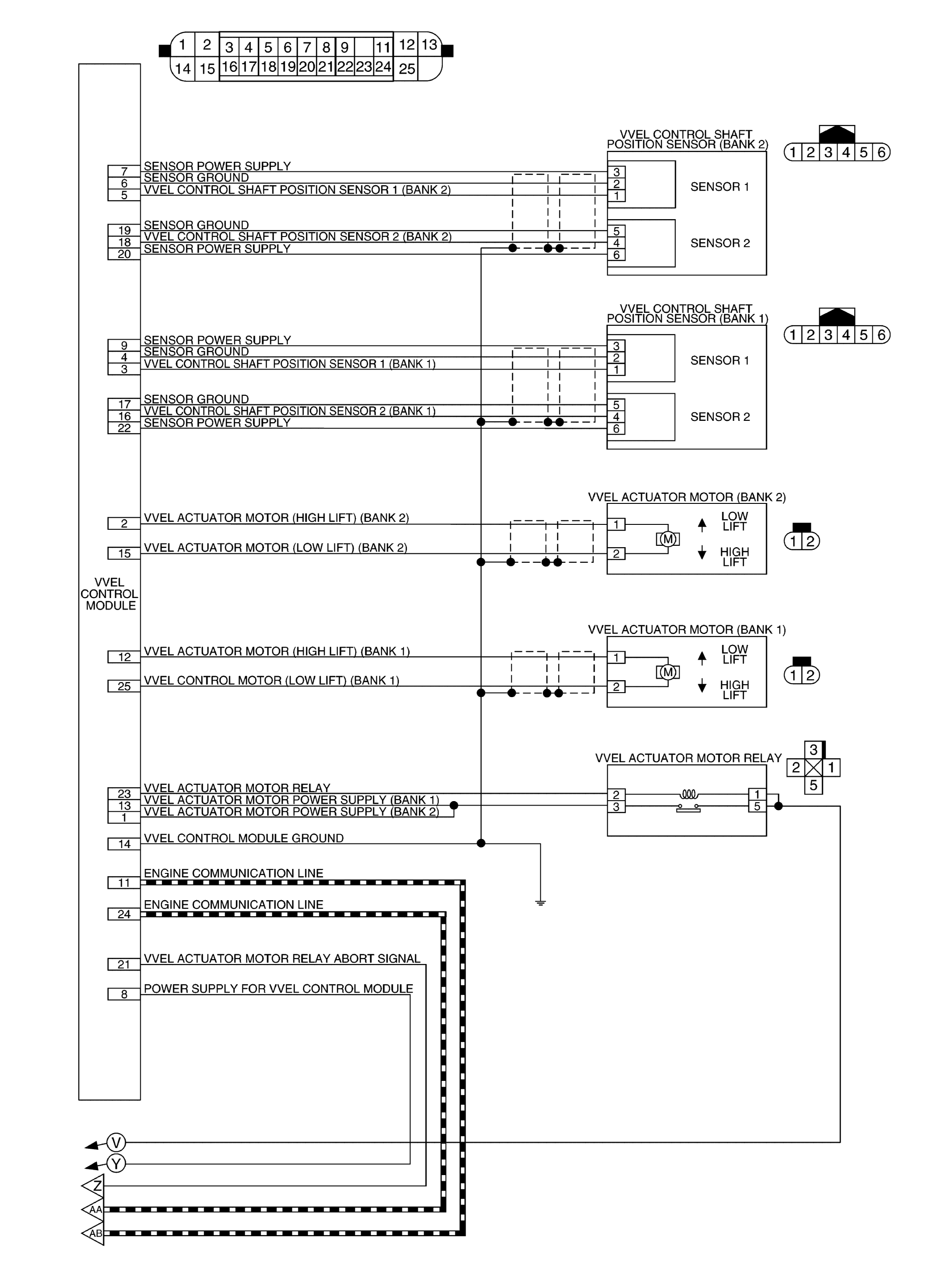

Fig 4: Engine Control System Circuit Diagram (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

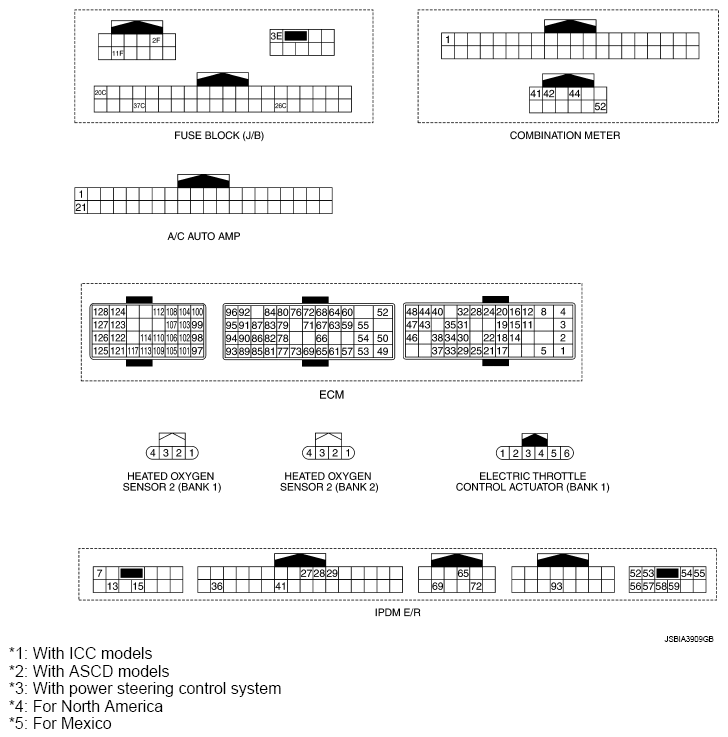

Fig 5: Engine Control System Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
