DOOR LOCK FUNCTION: System Diagram

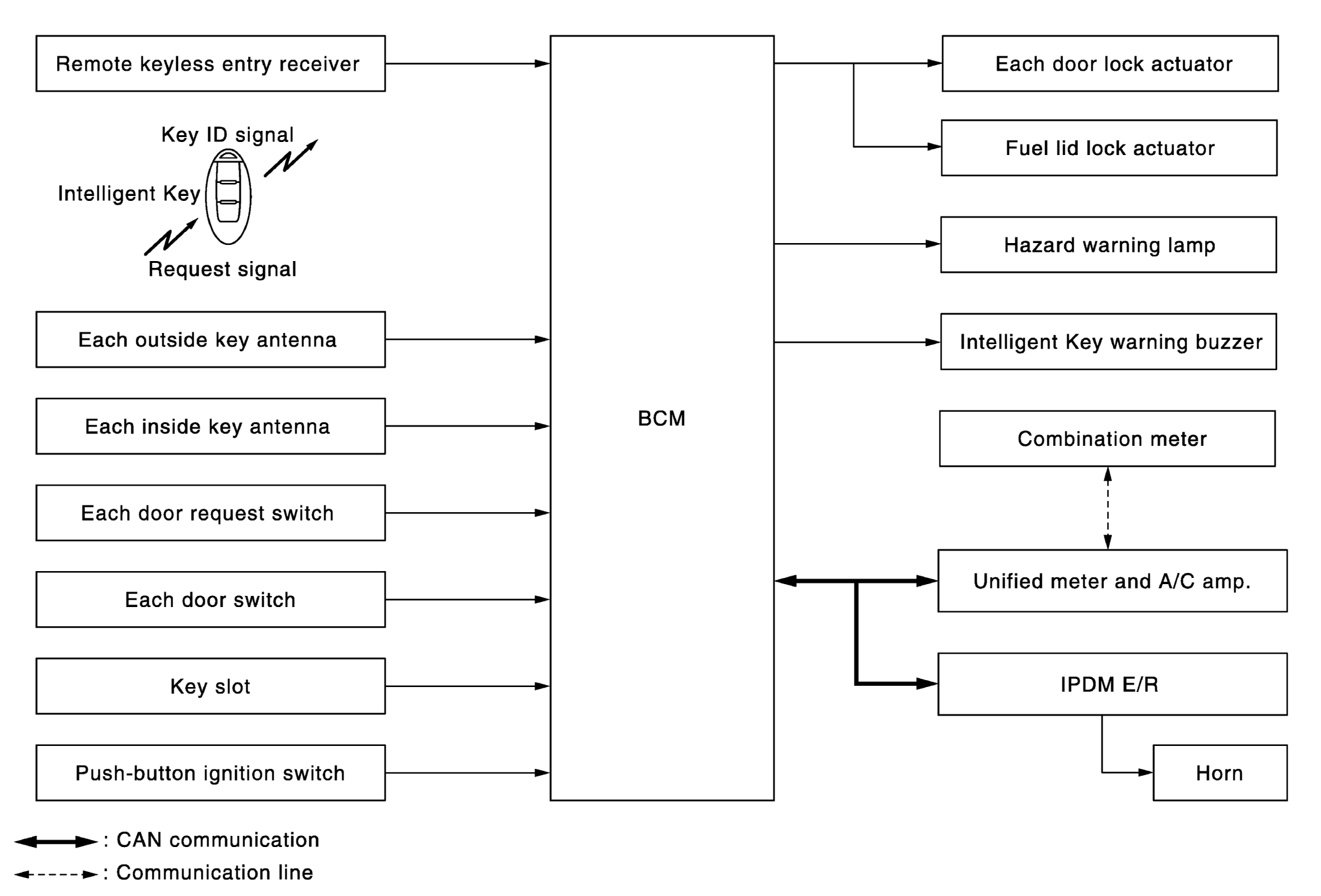

Fig 1: Door Lock Function - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
