REMOTE KEYLESS ENTRY FUNCTION: Component Parts Location

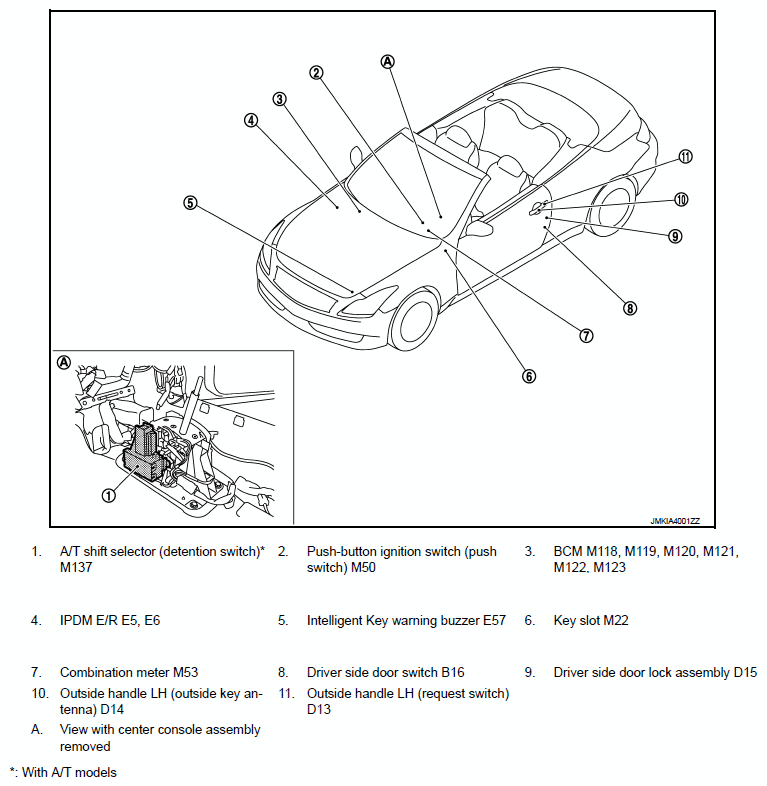

Fig 1: Remote Keyless Entry Function Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

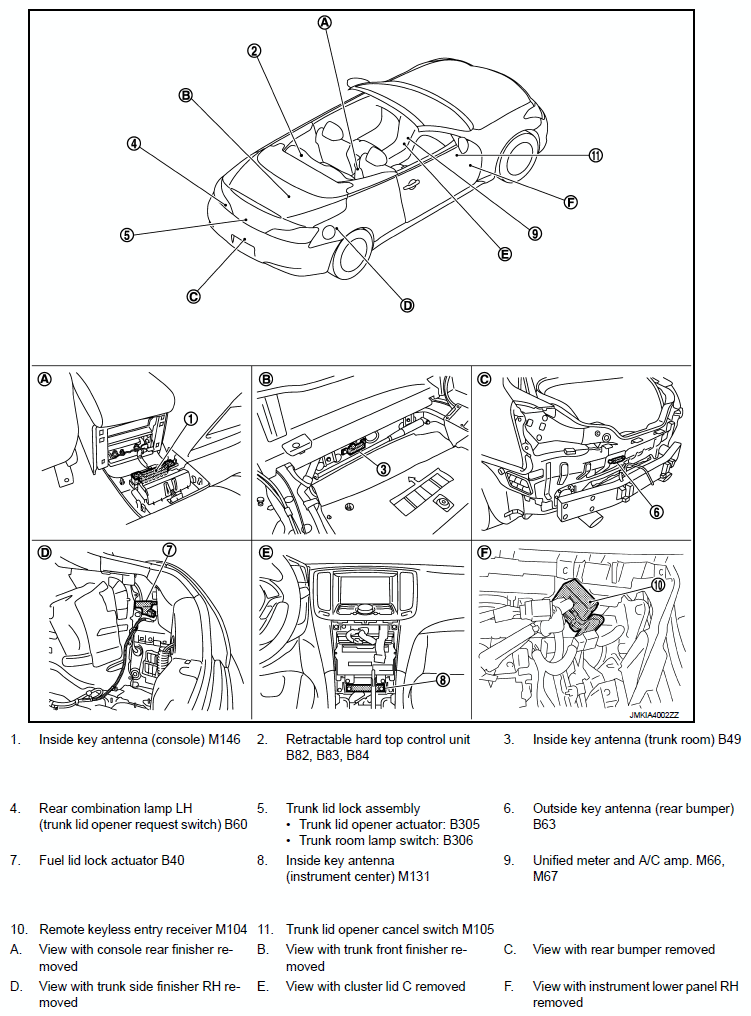

Fig 2: Remote Keyless Entry Function Component Location (With A/T Models)

Courtesy of NISSAN NORTH AMERICA, INC.
