Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Security Control System (Convertible)
>>
Ecu Diagnosis Information
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Wiring Diagram - IPDM E/R -
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagram - IPDM E/R -

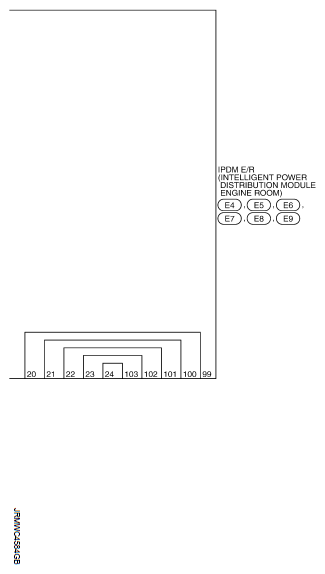

Fig 1: Intelligent Power Distribution Module Engine Room - Wiring Diagram (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Power Distribution Module Engine Room - Wiring Diagram (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intelligent Power Distribution Module Engine Room - Wiring Diagram (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
