Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control System (Convertible)
>>
System Description
>>
Combination Switch Reading System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

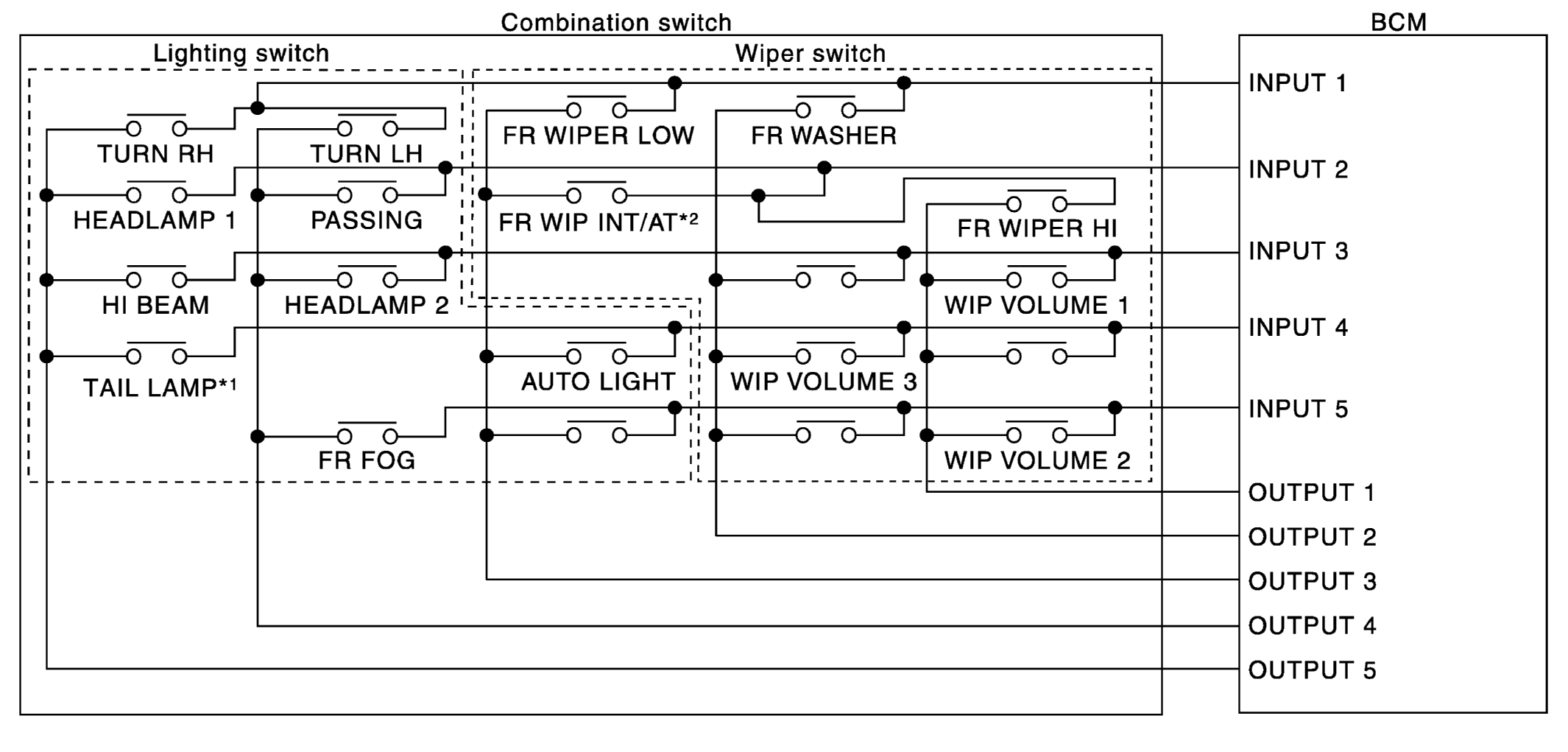

Fig 1: Combination Switch Reading - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
*1: TAIL LAMP switch links lighting switch 1ST position.
*2: "FR WIP INT/AT" is FR WIPER INT/AUTO.
Courtesy of NISSAN NORTH AMERICA, INC.
