Exploded View

CAUTION: Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor integrated unit.

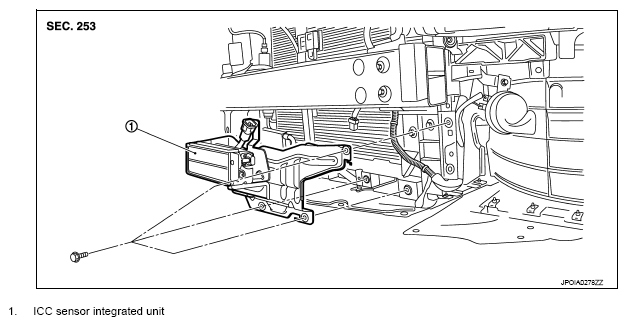

Fig 1: Exploded View Of ICC Sensor Integrated Unit
G09465079Courtesy of NISSAN NORTH AMERICA, INC.
