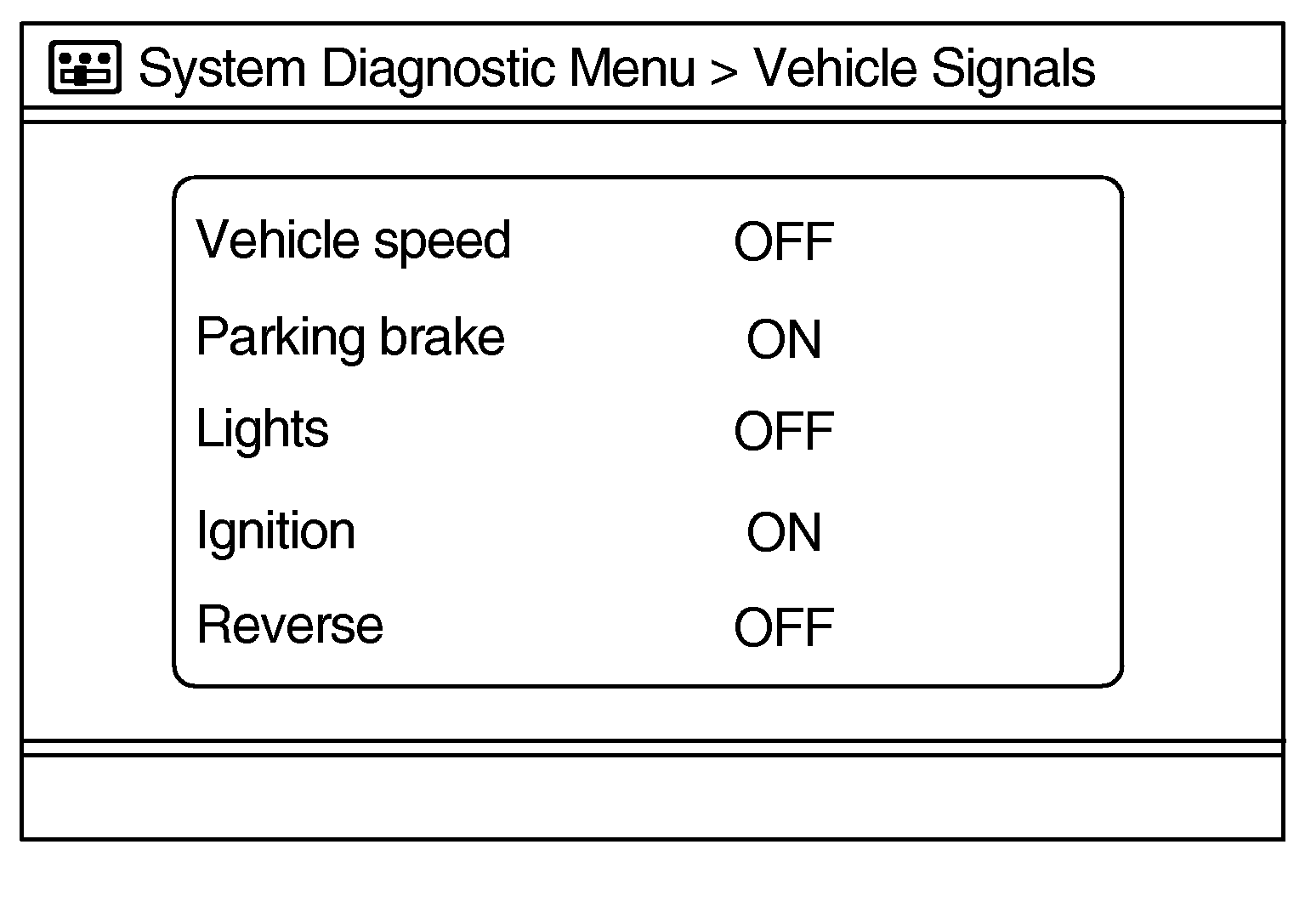

Vehicle Signals
A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
| Diagnosis item | Display | Vehicle status | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed > 0 km/h (0 MPH) | Changes in indication may be delayed. This is normal. |
| OFF | Vehicle speed = 0 km/h (0 MPH) | ||
| Parking brake | ON | Parking brake is applied. | |
| OFF | Parking brake is released. | ||
| Lights | ON | Light switch ON | - |
| OFF | Light switch OFF | ||
| Ignition | ON | Ignition switch ON | - |
| OFF | Ignition switch in ACC position | ||
| Reverse | ON | Shift the selector lever to "R" position | Changes in indication may be delayed. This is normal. |
| OFF | Shift the selector lever other than "R" position |
