MULTI AV SYSTEM: System Diagram

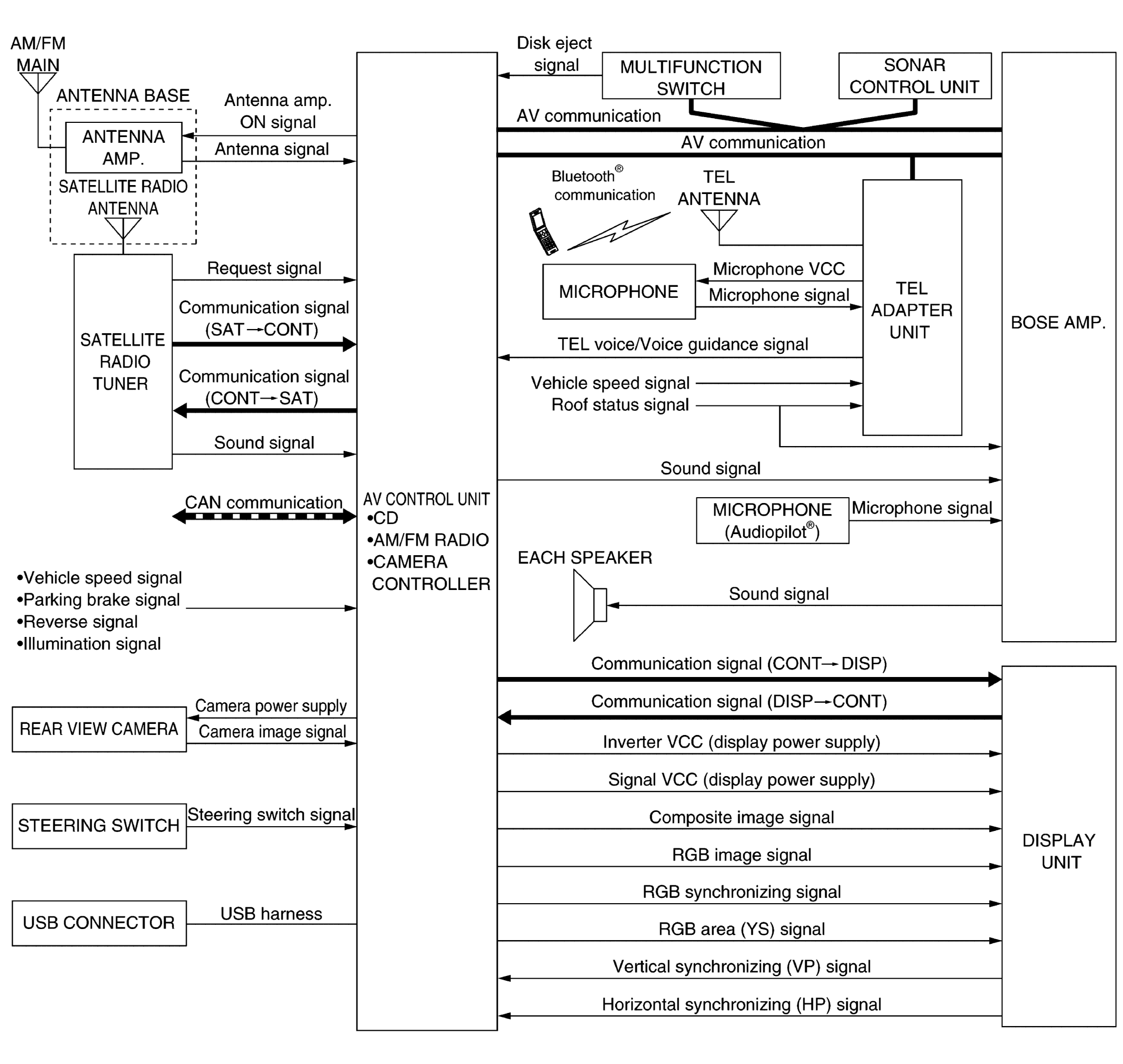

Fig 1: Multi AV - System Diagram
G08738828Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
  • An antenna base integrated with radio antenna and satellite radio antenna is adopted.
Fig 2: Antenna Amp And Satellite Antenna Communication Diagram
G05731530Courtesy of NISSAN NORTH AMERICA, INC.
