Front Wiper And Washer System Connector End Views

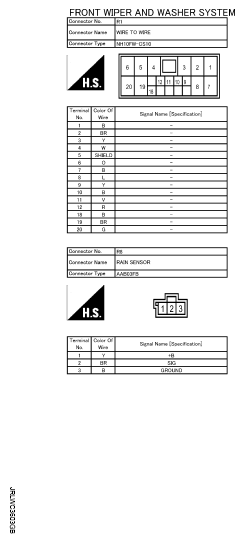

Fig 1: Front Wiper And Washer System Connector End View (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

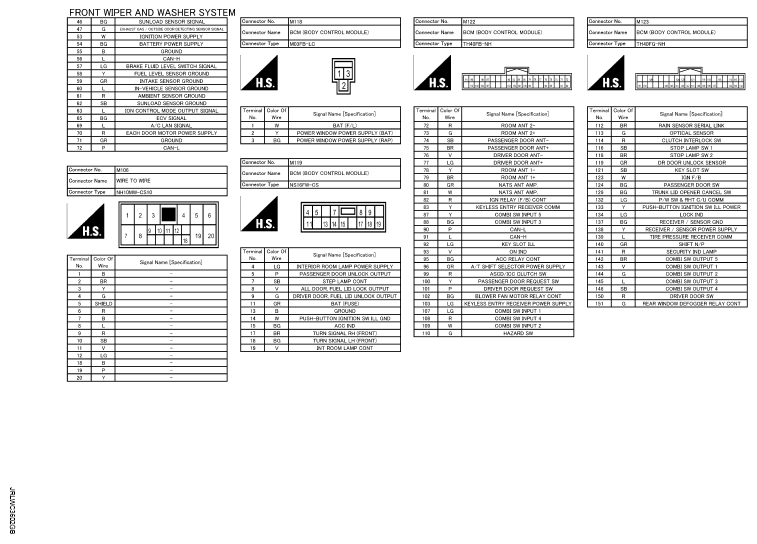

Fig 2: Front Wiper And Washer System Connector End View (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

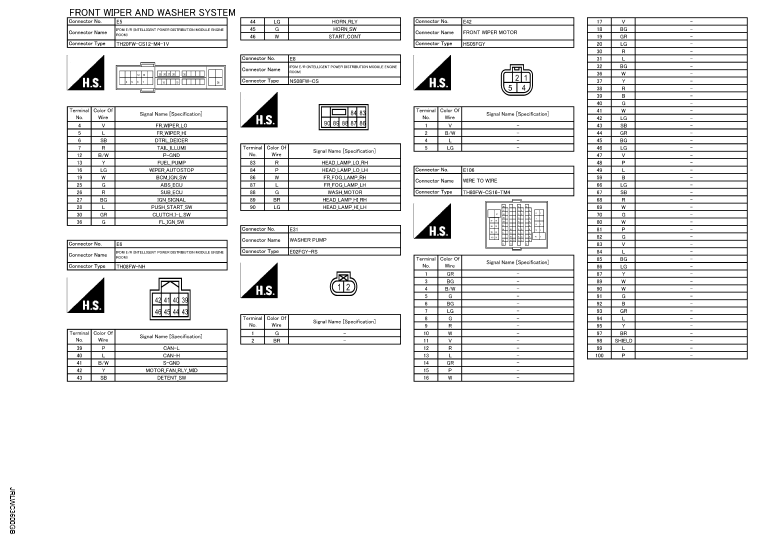

Fig 3: Front Wiper And Washer System Connector End View (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Front Wiper And Washer System Connector End View (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
