Infiniti
>>
2014
>>
Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper & Washer System (Convertible)
>>
Removal And Installation
>>
Front Wiper Drive Assembly
>>
Exploded View
>>
Disassembled View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Disassembled View

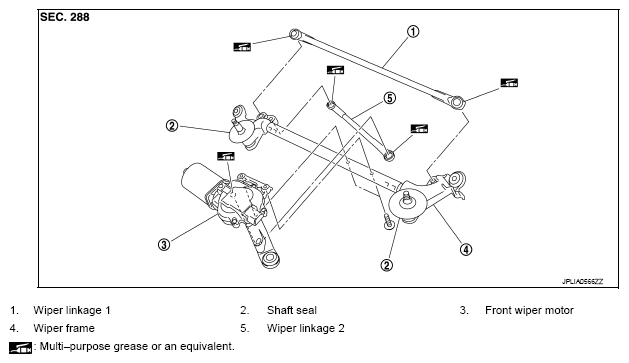

Fig 1: Disassembled View Of Front Wiper Drive
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
