Automatic Drive Positioner Control System Connector End Views

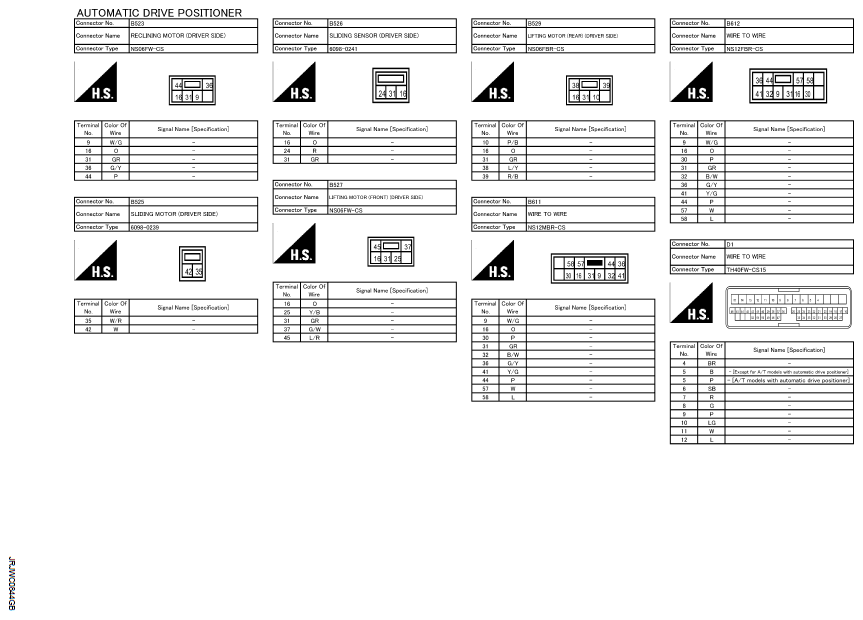

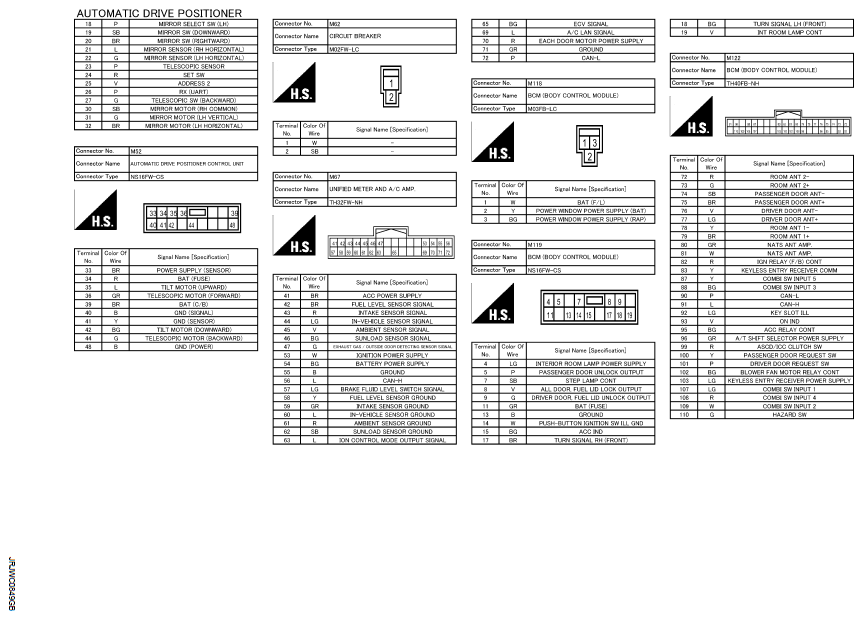

Fig 1: Automatic Drive Positioner Control System Connector End View (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

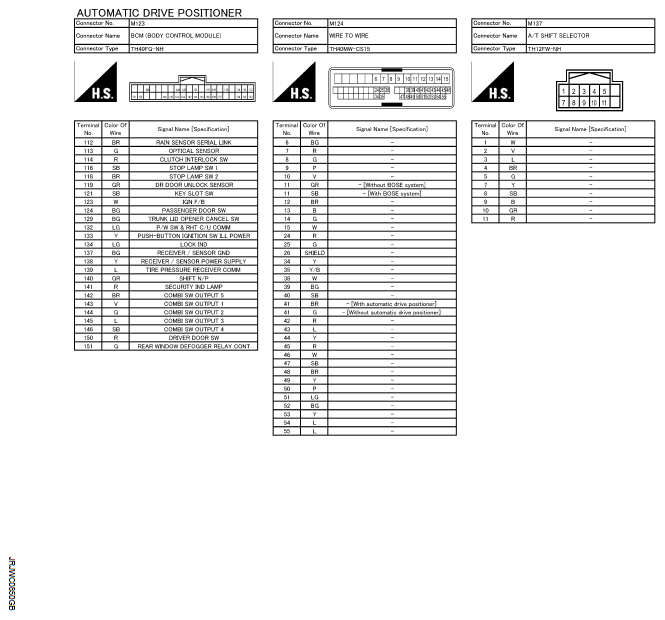

Fig 2: Automatic Drive Positioner Control System Connector End View (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

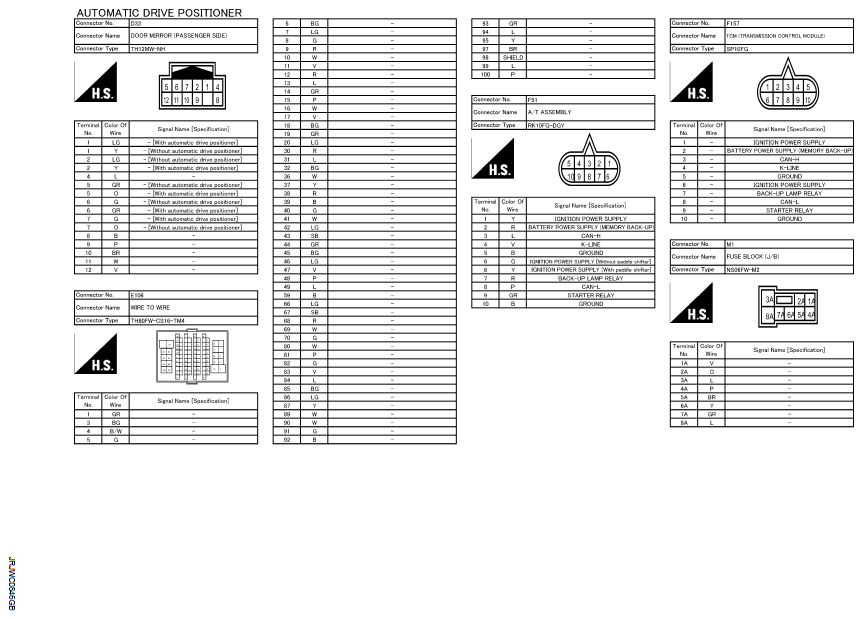

Fig 3: Automatic Drive Positioner Control System Connector End View (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

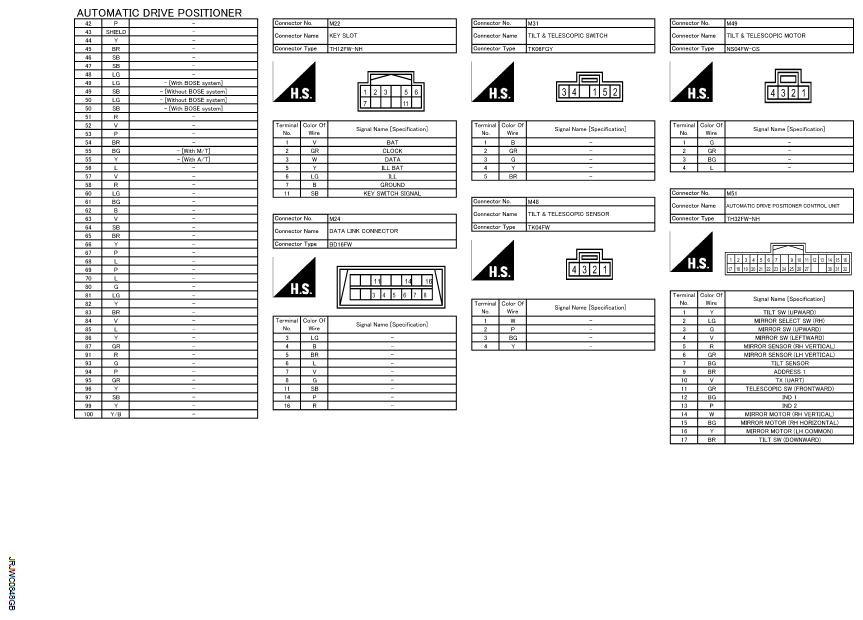

Fig 4: Automatic Drive Positioner Control System Connector End View (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

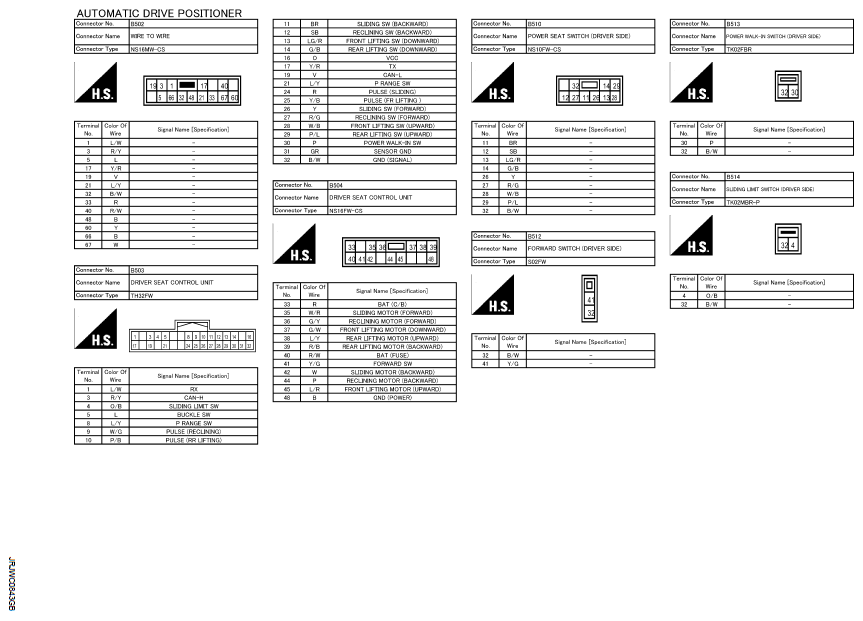

Fig 5: Automatic Drive Positioner Control System Connector End View (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

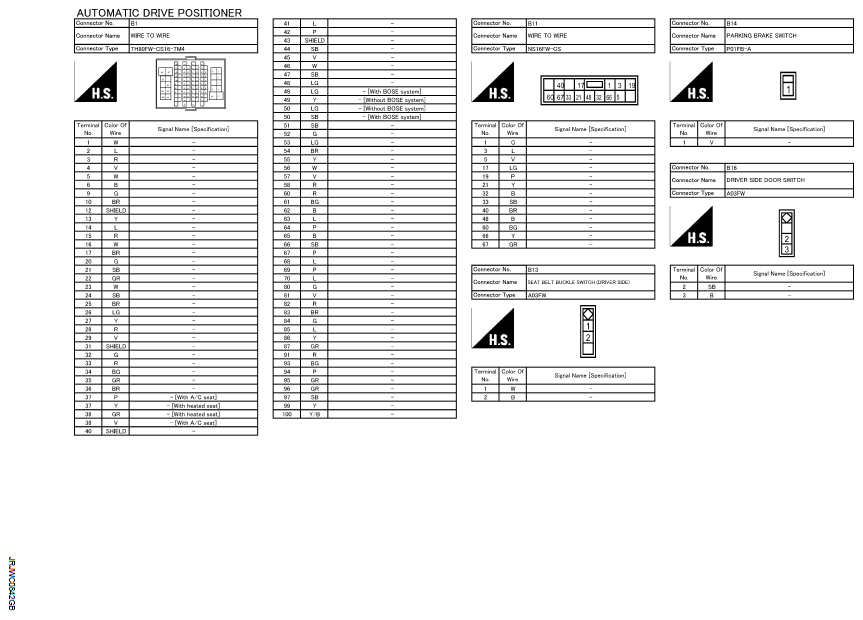

Fig 6: Automatic Drive Positioner Control System Connector End View (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

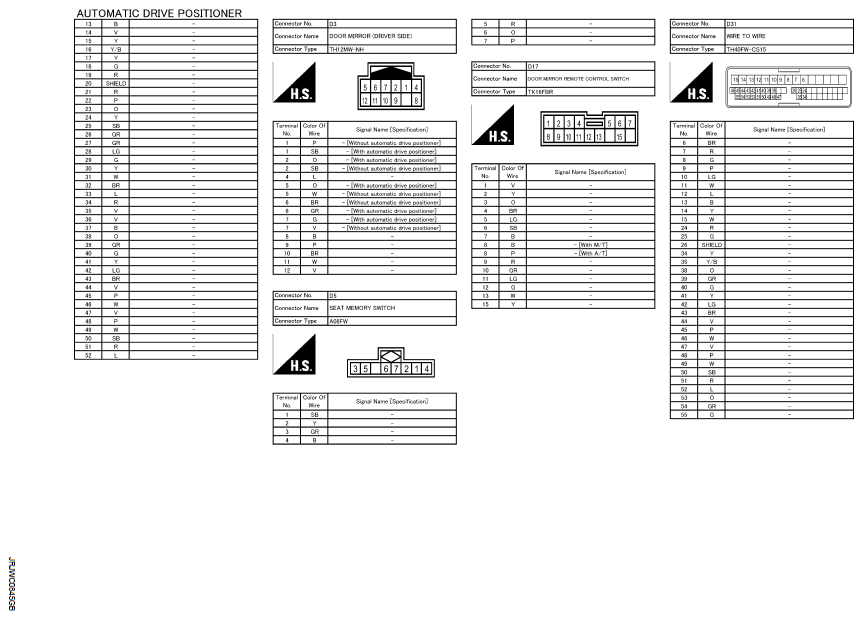

Fig 7: Automatic Drive Positioner Control System Connector End View (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

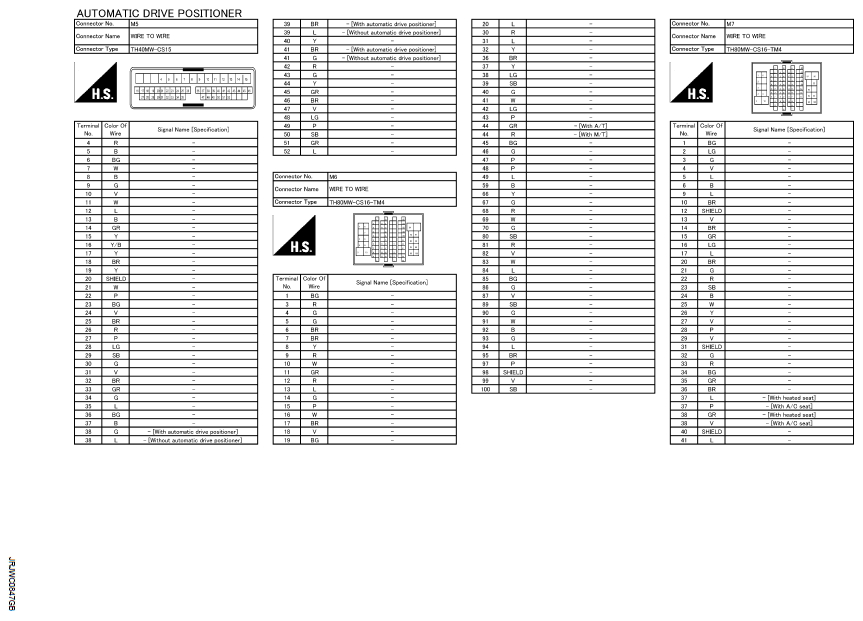

Fig 8: Automatic Drive Positioner Control System Connector End View (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Automatic Drive Positioner Control System Connector End View (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
