MEMORY FUNCTION: System Diagram

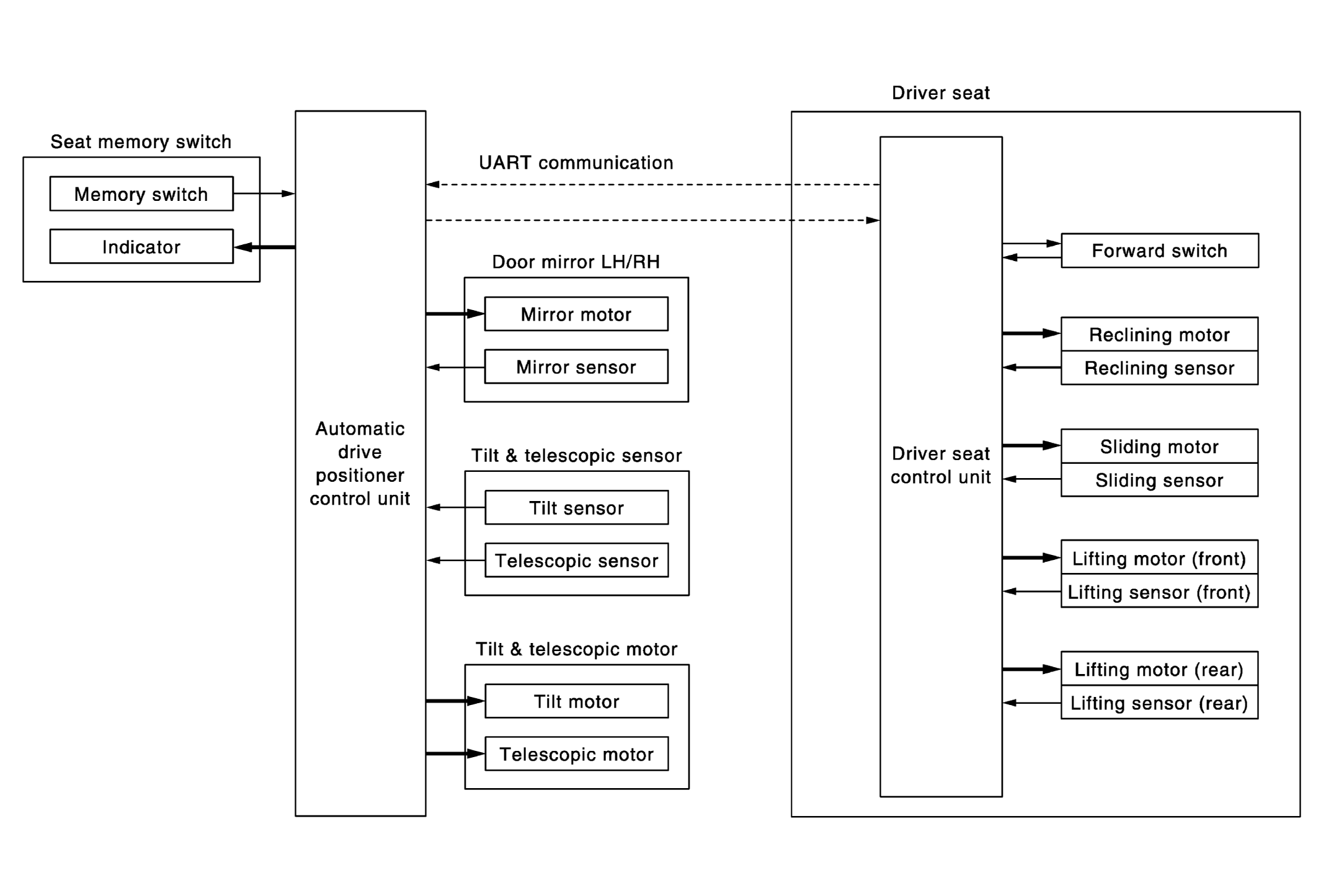

Fig 1: Memory Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
