Connector End Views

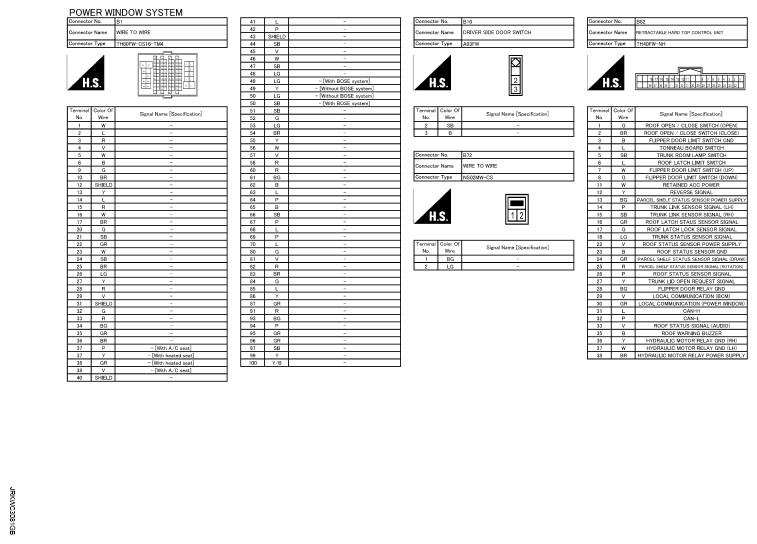

Fig 1: Power Window Control System Connector End Views (1 Of 7)
G09467267Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Power Window Control System Connector End Views (2 Of 7)
G09467268Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Power Window Control System Connector End Views (3 Of 7)
G09467269Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Power Window Control System Connector End Views (4 Of 7)
G09467270Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Power Window Control System Connector End Views (5 Of 7)
G09467271Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Power Window Control System Connector End Views (6 Of 7)
G09467272Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Power Window Control System Connector End Views (7 Of 7)
G09467273Courtesy of NISSAN NORTH AMERICA, INC.
