A/T: Assembly: Notes

  1. Install front bearing outer race (1) and rear bearing outer race (2) using drifts (A, B and D) and drift bar (C).

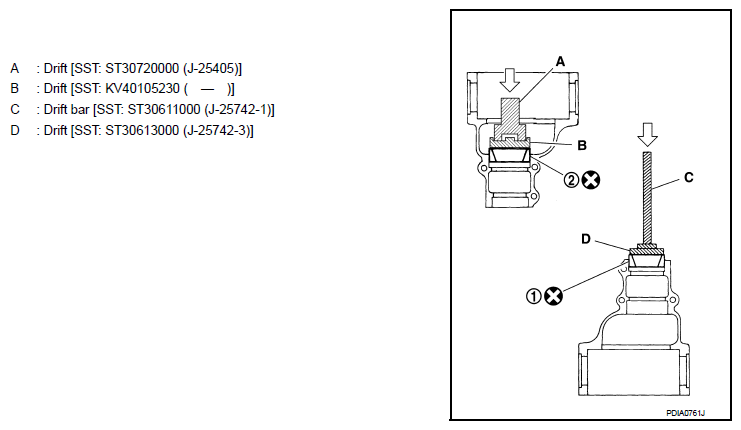

    Fig 1: Installing Front Bearing Outer Race And Rear Bearing Outer Race Using Drifts And Drift Bar
    G09463470Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • At first, using a hammer, tap bearing outer race until it becomes flat to gear carrier.
    • Never reuse pinion front and rear bearing outer race.
  2. Temporarily install pinion height adjusting washer (1).

    When hypoid gear set has been replaced

    When hypoid gear set has been reused

    • Temporarily install the removed pinion height adjusting washer or same thickness washer to drive pinion.
    CAUTION: Pay attention to the direction of pinion height adjusting washer. (Assemble as shown in the figure below.)

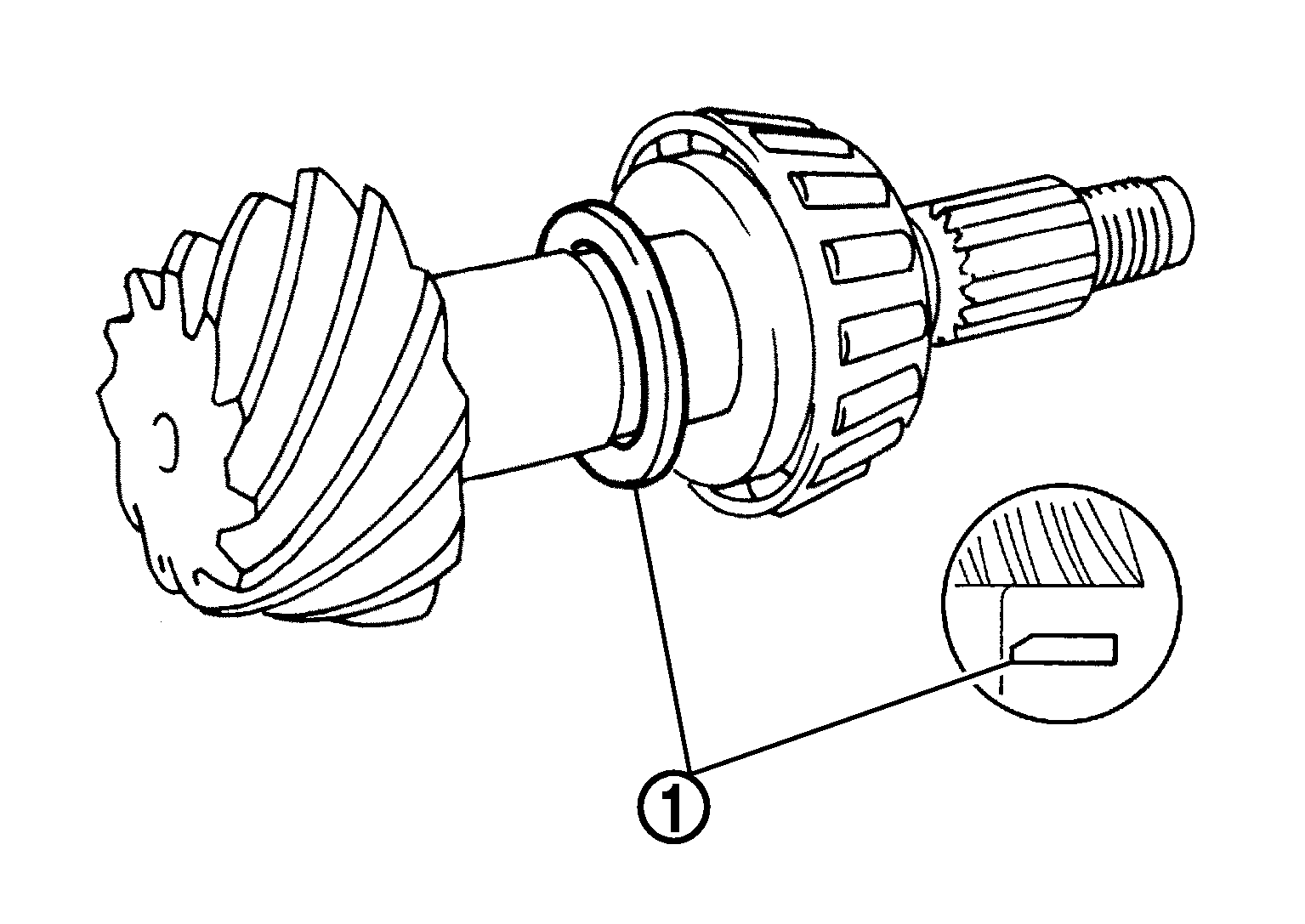

    Fig 2: Identifying Pinion Height Adjusting Washer
    G05983971Courtesy of NISSAN NORTH AMERICA, INC.
  3. Install pinion rear bearing inner race (1) to drive pinion with the drift (A) [SST: ST30901000 (J-26010-01)].
    CAUTION: Never reuse pinion rear bearing inner race.
  4. Check and adjust the tooth contact and back lash of drive gear and drive pinion following the procedure below.
    1. Assemble drive pinion into gear carrier.
      CAUTION:
      • Do not install collapsible spacer at this time.
      • Apply gear oil to pinion rear bearing.

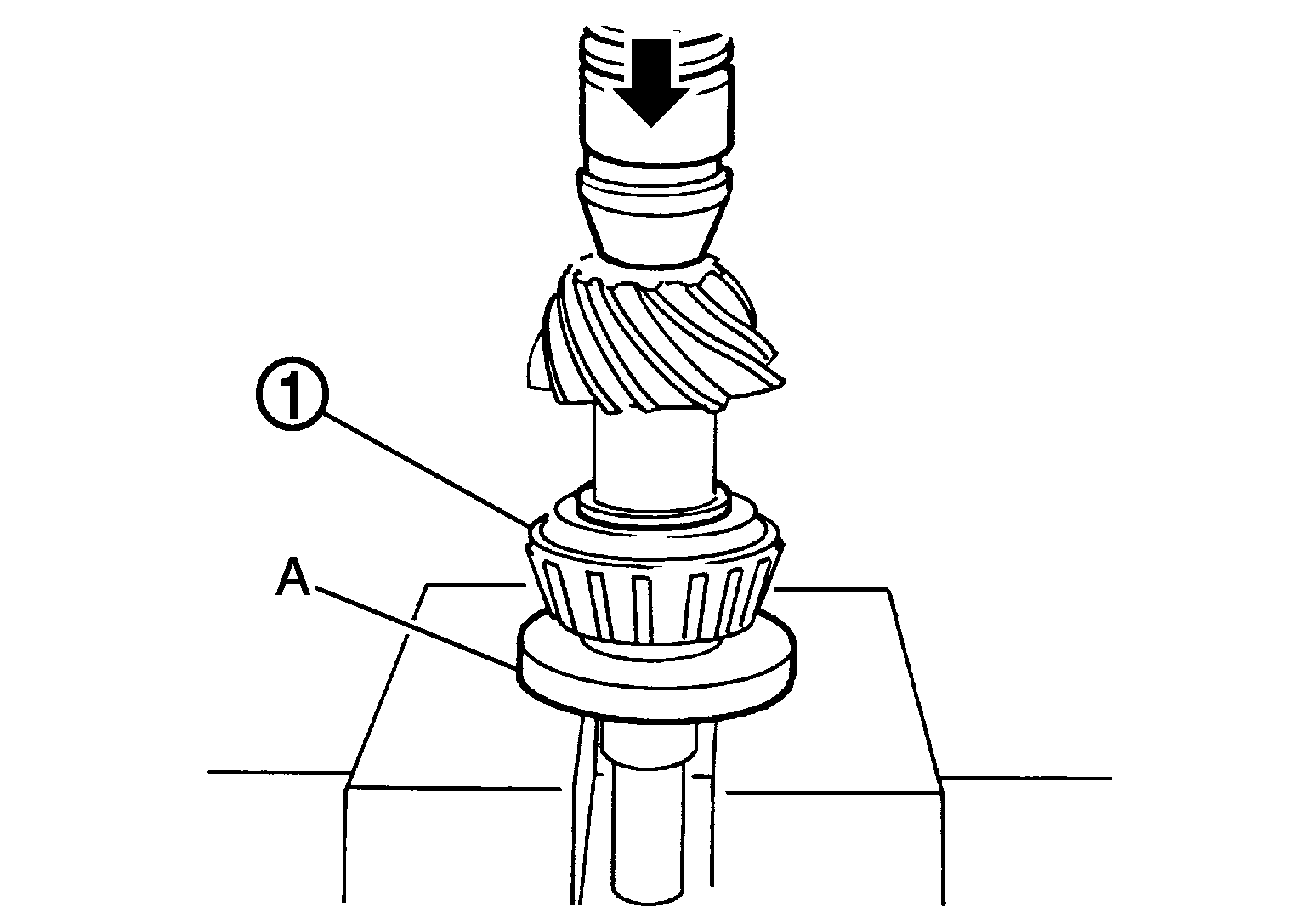

      Fig 3: Installing Inner Race Of Pinion Bearing (Rear) To Drive Pinion Using Drift
      G05983972Courtesy of NISSAN NORTH AMERICA, INC.
    2. Assemble pinion front bearing inner race to drive pinion assembly.
      CAUTION:
      • Never reuse pinion front bearing inner race.
      • Apply gear oil to pinion front bearing.
    3. Using suitable spacer (A) (commercial service tool), press the pinion front bearing inner race to drive pinion as far as drive pinion nut can be tightened.
      Fig 4: Pressing Pinion Front Bearing Inner Race To Drive Pinion Using Spacer
      G05225652Courtesy of NISSAN NORTH AMERICA, INC.
    4. Install companion flange.
      CAUTION: Do not install front oil seal at this time.
      NOTE: When reusing drive pinion, align the matching mark (B) of drive pinion with the matching mark (A) of companion flange, and then install companion flange (1).

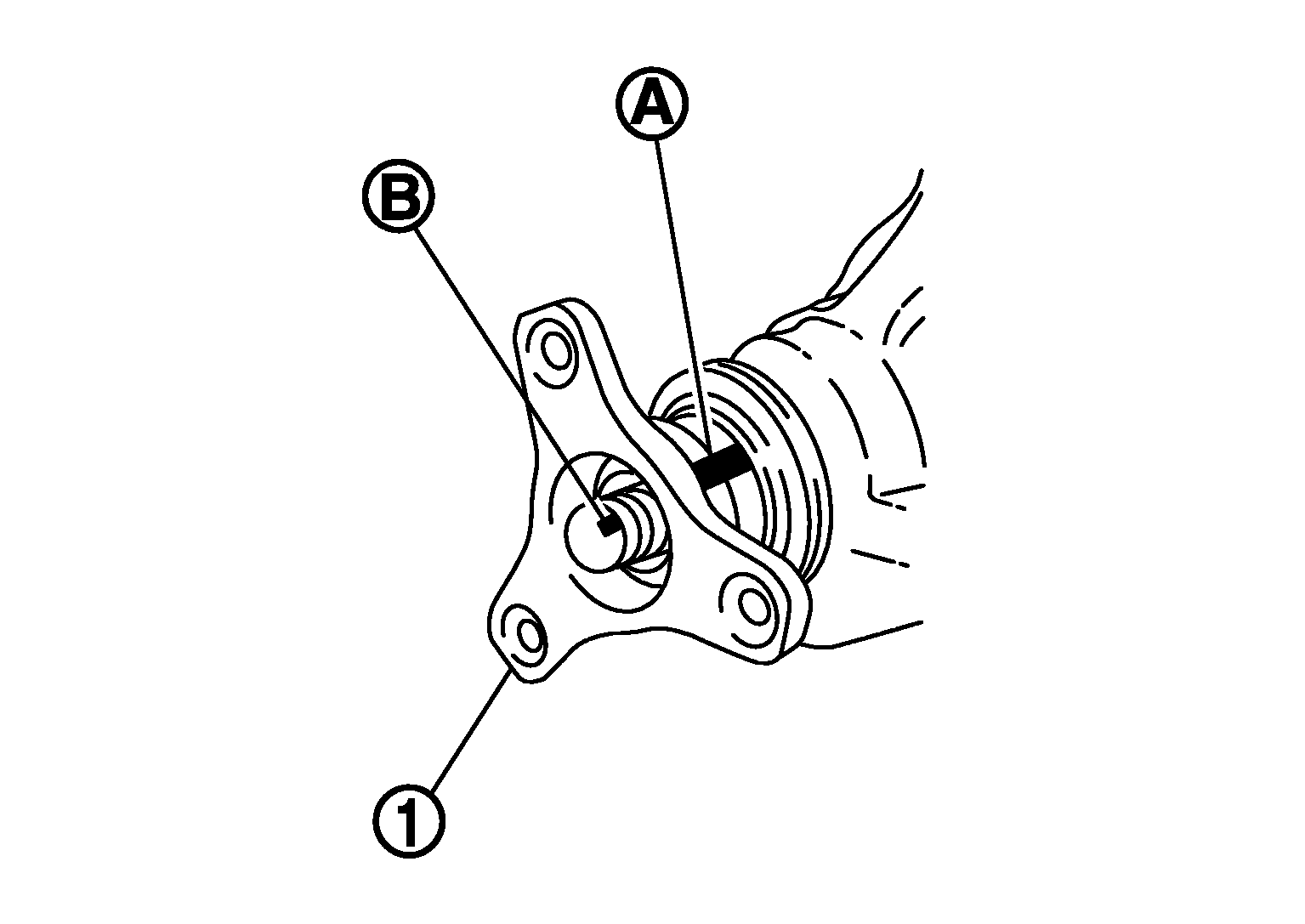

      Fig 5: Identifying Matching Mark On End Of Drive Pinion
      G05219268Courtesy of NISSAN NORTH AMERICA, INC.
    5. Temporarily tighten removed drive pinion nut to drive pinion, using flange wrench (commercial service tool).

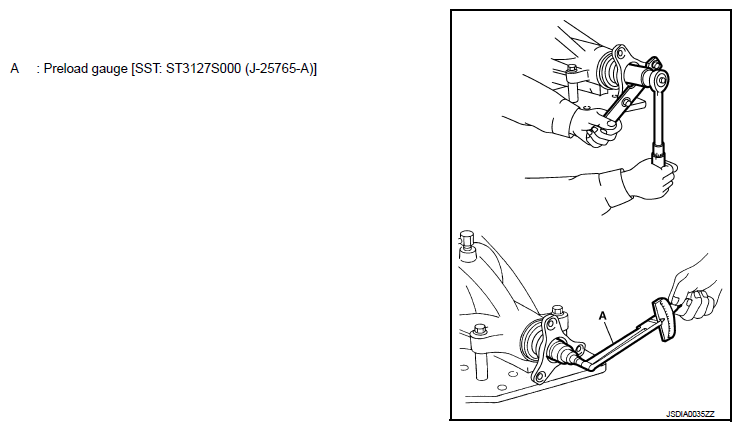

      Fig 6: Adjusting Pinion Bearing Preload Torque Using Preload Gauge
      G09463475Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: Use removed drive pinion nut only for the preload measurement.
    6. Rotate drive pinion more than 20 times to adjust bearing.
    7. Tighten to drive pinion lock nut using flange wrench (commercial service tool), while adjusting pinion bearing preload torque using preload gauge [SST: ST3127S000 (J-25765-A)].

      Pinion bearing preload (without oil seal): 1.0 - 1.3 N.m (0.11 - 0.13 kg-m, 9 - 11 in-lb)

      CAUTION: Drive pinion nut is tightened with no collapsible spacer. Be careful not to overtighten it. While measuring the preload, tighten drive pinion nut in 5° to 10° increments.
    8. Assemble removed drive side bearing adjusting washer or same thickness of it and install differential case assembly. Refer to "A/T: ASSEMBLY ".
      CAUTION:
      • Apply differential gear oil to the side bearings.
      • Install side bearing and side bearing adjusting washer in correct location. (drive gear tooth side or drive gear back side)
    9. Install bearing caps.
    10. Check and adjust tooth contact and drive gear to drive pinion backlash. Refer to "A/T: ADJUSTMENT ".
    11. Remove bearing caps and differential case assembly.
    12. Remove companion flange.
    13. Remove drive pinion assembly from gear carrier.
      CAUTION: Never drop the drive pinion assembly.
    14. Remove pinion front bearing inner race.
  5. Assemble collapsible spacer.
    CAUTION: Never reuse collapsible spacer.
  6. Assemble drive pinion into gear carrier.
    CAUTION: Apply gear oil to pinion rear bearing.
  7. Assemble pinion front bearing inner race to drive pinion assembly.
    Fig 7: Pressing Drive Pinion Assembly Out Of Gear Carrier
    G05225627Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse pinion front bearing inner race.
    • Apply gear oil to pinion front bearing.
  8. Using suitable spacer (A) (commercial service tool), press the pinion front bearing inner race to drive pinion as far as drive pinion nut can be tightened.
    Fig 8: Pressing Pinion Front Bearing Inner Race To Drive Pinion Using Spacer
    G05225652Courtesy of NISSAN NORTH AMERICA, INC.
  9. Using the drift (A) [SST: ST30720000 (J-25405)], install front oil seal as shown in figure below.
    CAUTION:
    • Never reuse oil seal.
    • When installing, never incline oil seal.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
    Fig 9: Installing Front Oil Seal Using Drift
    G05225653Courtesy of NISSAN NORTH AMERICA, INC.
  10. Install companion flange.
    NOTE: When reusing drive pinion, align the matching mark (B) of drive pinion with the matching mark (A) of companion flange, and then install companion flange (1).
    Fig 10: Identifying Matching Mark On End Of Drive Pinion
    G05219268Courtesy of NISSAN NORTH AMERICA, INC.
  11. Apply anti-corrosion oil to the thread and seat of drive pinion lock nut, and temporarily tighten drive pinion lock nut to drive pinion, using flange wrench (commercial service tool).

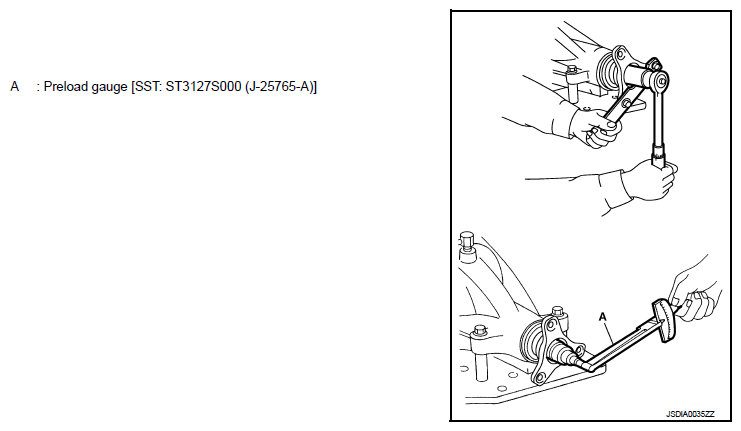

    Fig 11: Adjusting Drive Pinion Lock Nut Tightening Torque And Pinion Bearing Preload Torque Using Preload Gauge
    G09463480Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never reuse drive pinion lock nut.
  12. Adjust to the drive pinion lock nut tightening torque and pinion bearing preload torque, using preload gauge [SST: ST3127S000 (J-25765-A)].

    Pinion bearing preload: Refer to  "PRELOAD TORQUE ".

    CAUTION:
    • Adjust to the lower limit of the drive pinion lock nut tightening torque first.
    • If the preload torque exceeds the specified value, replace collapsible spacer and tighten it again to adjust. Never loosen drive pinion lock nut to adjust the preload torque.
    • After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rotation malfunction, and other malfunctions.
  13. Install differential case assembly. Refer to "A/T: ASSEMBLY ".
    CAUTION: Do not install rear cover at this time.
  14. Check and adjust drive gear runout, tooth contact and drive gear to drive pinion backlash, and companion flange runout. Refer to "A/T: ADJUSTMENT " and "A/T: ADJUSTMENT ".

    Recheck above items. Readjust the above description, if necessary.

  15. Check total preload torque. Refer to "A/T: ADJUSTMENT ".
  16. Install rear cover. Refer to "A/T: ASSEMBLY ".
