A/T: Exploded View

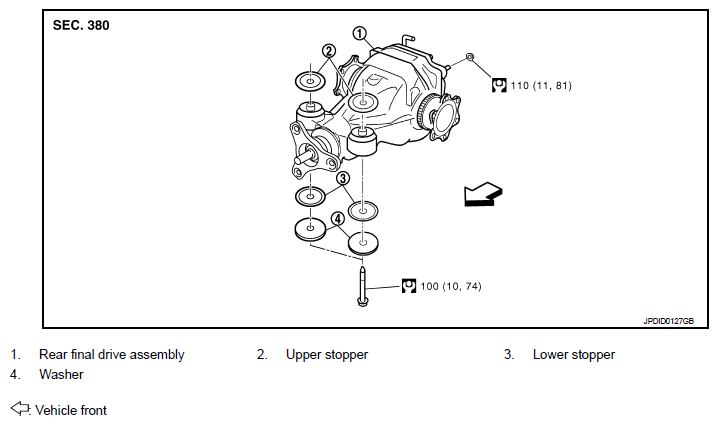

Fig 1: Exploded View Of Rear Final Drive Assembly (A/T) With Torque Specifications
G09463356Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
